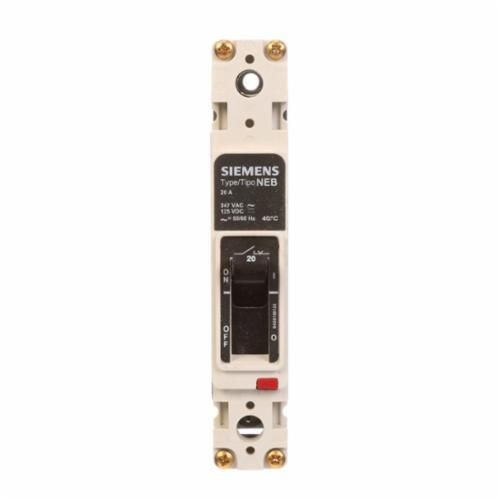

Siemens NEB1B020B Type NEB Low Voltage Molded Case Circuit Breaker, 347 VAC, 20 A, 35 kA Interrupt, 1 Poles, Thermal/Magnetic Trip
Siemens NEB1B020B Type NEB Low Voltage Molded Case Circuit Breaker, 347 VAC, 20 A, 35 kA Interrupt, 1 Poles, Thermal/Magnetic Trip
SKU: SIENEB1B020B
Manufacturer Part Number: NEB1B020B
UPC: 783643558151
Documents
Features
- 14 to 6 AWG copper, 12 to 6 AWG aluminum wire
- 22 kA at 347 VAC, 35 kA at 277 VAC, 85 kA at 240 VAC interrupt rating
- Global interchangeable
Specification
| Frequency Rating | 50/60 Hz |
|---|---|
| Interrupt Rating | 35 kA |
| Mounting Type | Panel |
| Number Of Poles | 1 |
| Phase | 1 |
| Temperature Rating | 40 deg C |
| Trip Type | Thermal/Magnetic |
| Type | Type NEB Low Voltage |
| Voltage Rating | 347 VAC |
| Wire Size | 14 to 6 AWG, 12 to 6 AWG |
| Standard & Approvals | CSA Certified, HACR, SWD Rated, UL 489 |
| Amperage Rating | 20 A |
| Connection Type | Load Lug |
| Application | For global interchangeable use |
