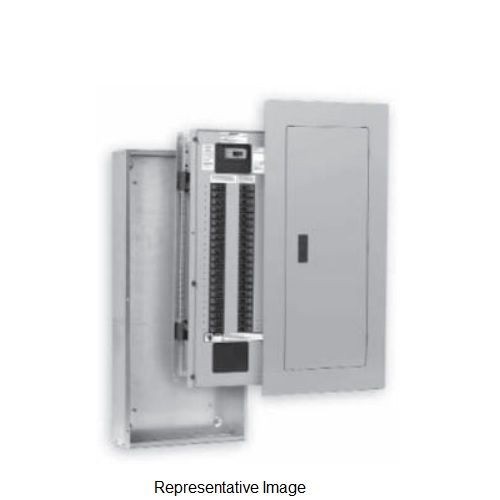

Siemens P1A42MC250C 42-Circuit 1-Phase Type P1 Panelboard Interior, 120/240 VAC, 250 A, 100 kA SCCR

Pick Up Only
Selected Siemens P1A42MC250C 42-Circuit 1-Phase Type P1 Panelboard Interior, 120/240 VAC, 250 A, 100 kA SCCR
Siemens P1A42MC250C 42-Circuit 1-Phase Type P1 Panelboard Interior, 120/240 VAC, 250 A, 100 kA SCCR

Documents

Short Description

The standard Siemens P1 panelboard has some unique features that make it easier to design for an engineer, easier to reconfigure in the field for a contractor and easier to upgrade and maintain for the owner. What makes it different is its split neutral design and its open ended bus. In the Siemens panel, instead of the common single neutral bus on one end, there is a neutral bus on both sides that is cross bussed. This makes branch wiring simpler and cleaner the lead lengths for line and neutral can now be made the same, creating more room and a neater installation. It also allows access to both ends of the bus as a standard feature this provides the flexibility to make changes in the field, even if it wasn't part of the original configuration.

Specification

Minimum Order Qty
1
Order Interval
1
Amperage Rating
250 A
Bus Material
Copper
Color
Gray
Enclosure Type
NEMA 3R/12
Short Circuit Current Rating
100 kA
Voltage Rating
120/240 VAC
Wiring Configuration
3-Wire
Catalog ID
SIEP1A42MC250C
Breaker Type
BL/BLH/HBL/BQD/BQD6/FD6/FXD6/HFD6
Standard & Approvals
ARRA, Buy American Act, RoHS Compliant, UL 50, 67, NEMA PB1, NEC Certified
Application
Lighting, Distribution and Appliance Applications
Type
42-Circuit 1-Phase Type P1
Short Circuit Rating
100
