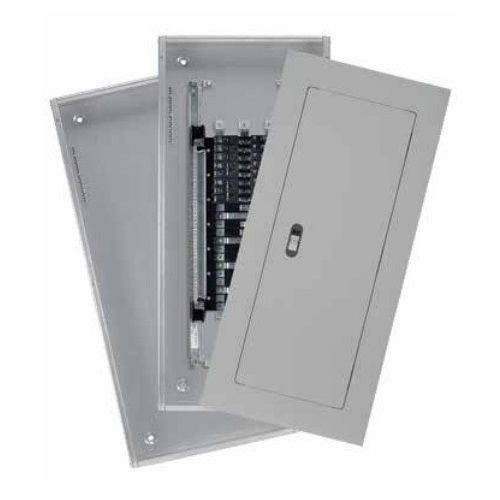

Siemens P1A42MC400AT Type P1 Panelboard Interior, 120/240 VAC, 400 A

Pick Up Only
Selected Siemens P1A42MC400AT Type P1 Panelboard Interior, 120/240 VAC, 400 A
Siemens P1A42MC400AT Type P1 Panelboard Interior, 120/240 VAC, 400 A

Documents

Short Description

Type P1 unassembled panelboards are completely convertible from main lug to main breaker and vice versa. Additionally feed-through lugs or a subfeed circuit breaker up to 400 A can be added without increasing the box height.

Features

  • Interior is completely symmetrical allowing it to be changed from top to bottom feed by simply rotating the interior
  • UPB interior
  • Without branch breaker

Specification

Housing Material
Steel
Minimum Order Qty
1
Order Interval
1
Video
https://digitalcontentcenter.compas.siemens-info.com/SIE_VI_UnassembledPanelboards.mp4
Amperage Rating
400 A
Breaker Type
BL/BLH/HBL
Bus Material
Aluminum
Catalog ID
SIEP1A42MC400AT
Dimensions
68 in H x 20 in W x 5-3/4 in D
Enclosure Type
NEMA 1/3R/12
Type
Type P1
Voltage Rating
120/240 VAC
Wiring Configuration
1-Phase, 3-Wire
Application
Lighting Loads and Branch Circuit Loads Applications
Standard & Approvals
PB1, UL 67
Includes
Interior, Hardware and Labels
