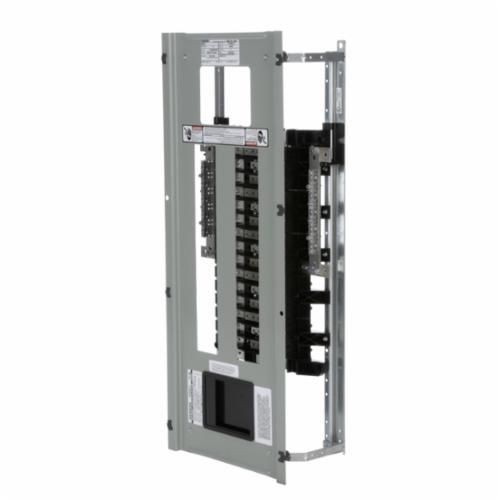

Siemens P1E30MC250AT Type P1 Panelboard Interior, 480/277 VAC, 250 A

Pick Up Only
Selected Siemens P1E30MC250AT Type P1 Panelboard Interior, 480/277 VAC, 250 A
Siemens P1E30MC250AT Type P1 Panelboard Interior, 480/277 VAC, 250 A

Documents

Short Description

Type P1 unassembled panelboards are completely convertible from main lug to main breaker and vice versa. Additionally feed-through lugs or a subfeed circuit breaker up to 400 A can be added without increasing the box height.

Features

  • Interior is completely symmetrical allowing it to be changed from top to bottom feed by simply rotating the interior
  • UPB interior
  • Without branch breaker

Specification

Housing Material
Steel
Type
Type P1
Application
Lighting Loads and Branch Circuit Loads Applications
Standard & Approvals
PB1, UL 67
Includes
Interior, Hardware and Labels
Enclosure Type
NEMA 1/3R/12
Bus Material
Aluminum
Breaker Type
BQD
Dimensions
38 in H x 20 in W x 5-3/4 in D
Amperage Rating
250 A
Wiring Configuration
3-Phase, 4-Wire
Voltage Rating
480/277 VAC
