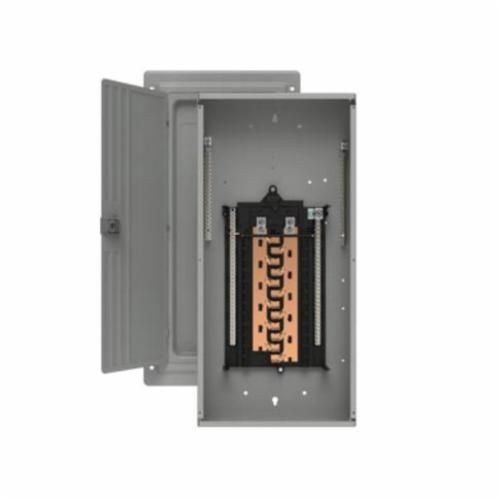

Siemens P2440L1200CU PL Series Single Phase Main Lug Load Center, 120/240 VAC, 200 A, 22 kA Interrupt
Siemens P2440L1200CU PL Series Single Phase Main Lug Load Center, 120/240 VAC, 200 A, 22 kA Interrupt
SKU: SIEP2440L1200CU
Manufacturer Part Number: P2440L1200CU
UPC: 040892649772
Documents
Short Description
Features
- Invertible for bottom feed application
- All devices are provided with 2 factory installed ground bars
- Combination head screw on the neutrals, ground, trim, upper pan, and bond screw provide installation flexibility
- A rigid, sturdy base pan provides the ruggedness required for the most harsh applications
- All devices convertible from main lug to main breaker and vice versa
- Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
- The prepositioned bond screw eliminates bond strap/screw assemblies, and reduces the risk of losing components in the field
- The patented INSTA-WIRE neutral/ground system allows for faster installation because screws are backed out, ready for wire insertion
- The visible neutral and grounds system aids in the insertion of conductors
- Dual neutrals on all configurations
- Indoor enclosure
- Copper busbar
- MBK150A/MBK200A breaker
- Combination mounting
Specification
| Interrupt Rating | 22 kA |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 200 A |
| Enclosure Type | NEMA 1 |
| Voltage Rating | 120/240 VAC |
| Wiring Configuration | 3-Wire |
| Application | Residential Applications |
| Breaker Type | MBK200A |
| Standard & Approvals | UL File No. E10703 |
| Enclosure Box Size | 30 in H x 14-1/4 in W x 3-7/8 in D |
| Catalog ID | SIEP2440L1200CU |
| Bus Rating | 200 A |
| Video | https://digitalcontentcenter.compas.siemens-info.com/SIE_VI_LoadCenter.mp4 |
| Number of Circuits | 40 |
| Series | PL Series |
| Includes | Ground Bar |
| Number of Spaces | 24 |
