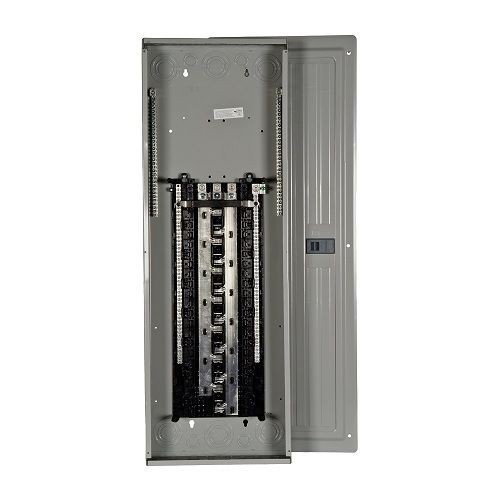

Siemens P4260L3225CU PL Series Three Phase Main Lug Load Center, 120/240 VAC, 225 A, 3 Poles, 100 kA Interrupt
Siemens P4260L3225CU PL Series Three Phase Main Lug Load Center, 120/240 VAC, 225 A, 3 Poles, 100 kA Interrupt
SKU: SIEP4260L3225CU
Manufacturer Part Number: P4260L3225CU
UPC: 662643158991
Short Description
Features
- Invertible for bottom feed application
- All devices are provided with 2 factory installed ground bars
- Combination head screw on the neutrals, ground, trim, upper pan, and bond screw provide installation flexibility
- A rigid, sturdy base pan provides the ruggedness required for the most harsh applications
- All devices convertible from main lug to main breaker and vice versa
- Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
- The prepositioned bond screw eliminates bond strap/screw assemblies, and reduces the risk of losing components in the field
- Indoor enclosure
- Copper busbar
- The visible neutral and grounds system aids in the insertion of conductors
- The patented INSTA-WIRE neutral/ground system allows for faster installation because screws are backed out, ready for wire insertion
- 22000 A switching capacity
Specification
| Interrupt Rating | 100 kA |
|---|---|
| Mounting Type | Surface |
| Number of Circuits | 60 |
| Number Of Poles | 3 |
| Number of Spaces | 42 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 225 A |
| Breaker Type | MB |
| Catalog ID | SIEP4260L3225CU |
| Dimensions | 42 in H x 14-1/4 in W x 4-1/4 in D |
| Enclosure Box Size | 42 in H |
| Enclosure Type | NEMA 1 |
| Series | PL Series |
| Voltage Rating | 120/240 VAC |
| Wiring Configuration | 4-Wire |
| Application | Residential Applications |
| Standard & Approvals | UL Listed |
