Siemens SPEEDFAX™ PN4040B1200 Pro PN Series 1-Phase Assembled Convertible Low Voltage Main Breaker Load Center With Aluminum Bus Bar and Gray Combination Trim, 120/240 VAC, 200 A, 22 kAIC Interrupt

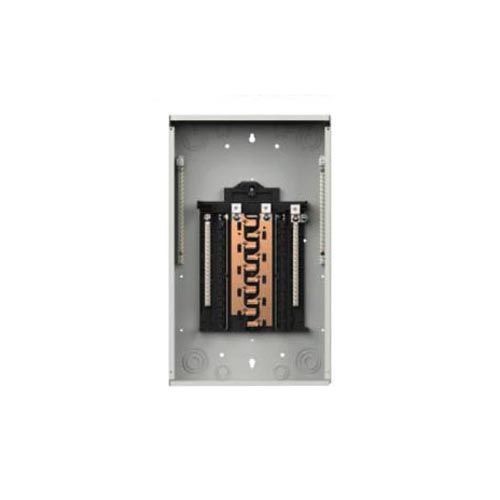

Selected PN5482B1200CSiemens SPEEDFAX™ PNW2040L1150C Pro PN Series 1-Phase Assembled Convertible Low Voltage Main Lug Load Center With Copper Bus Bar and Gray Combination Trim, 120/240 VAC, 150 A, 100 kAIC Interrupt
PN5482B1200CSiemens SPEEDFAX™ PNW2040L1150C Pro PN Series 1-Phase Assembled Convertible Low Voltage Main Lug Load Center With Copper Bus Bar and Gray Combination Trim, 120/240 VAC, 150 A, 100 kAIC Interrupt

Documents

Short Description

PN series load centers - a new high quality and feature rich line of load center products meets applications for virtually every need. The PN series provide maximum flexibility in combination with labor saving features to aid the contractor while installing the product. PN load centers accept the plug-on neutral breakers, patented Insta wire neutral/ground system, convertibility, copper bussing and mounting tabs on the trim, the features that we specifically engineered to decrease installation time and increase flexibility.

Features

  • Quicker breaker installation
  • Wiring made easier with the neutral lug removed on CAFCI breakers
  • Small electronic breaker footprint
  • Design allows for neutral terminal accessibility
  • Over 4 in of wire bending space
  • Neutral clip is the same as line side
  • Durable hook rail
  • Main breaker is factory installed
  • Designed for use with plug-on neutral breaker

Specification

Voltage Rating
120/240 VAC
Standard & Approvals
NEC, NEMA 250, UL E10703
Application
Indoor Applications
Interrupt Rating
22 kAIC
Amperage Rating
200 A
Wiring Configuration
3-Wire
Enclosure Type
NEMA 1
Dimensions
15.5 in W x 37.13 in H
Type
1-Phase Assembled Convertible Low Voltage
Series
Pro PN Series
Number of Spaces
40
Enclosure Box Size
14.25 in W x 3.88 in D x 36 in H
Number of Circuits
40
