Siemens SPEEDFAX™ PN5482L1225C Pro PN Series 1-Phase Assembled Convertible Low Voltage Main Lug Load Center With Copper Bus Bar and Gray Combination Trim, 120/240 VAC, 225 A, 100 kAIC Interrupt

Selected Siemens PN3048B1200S14

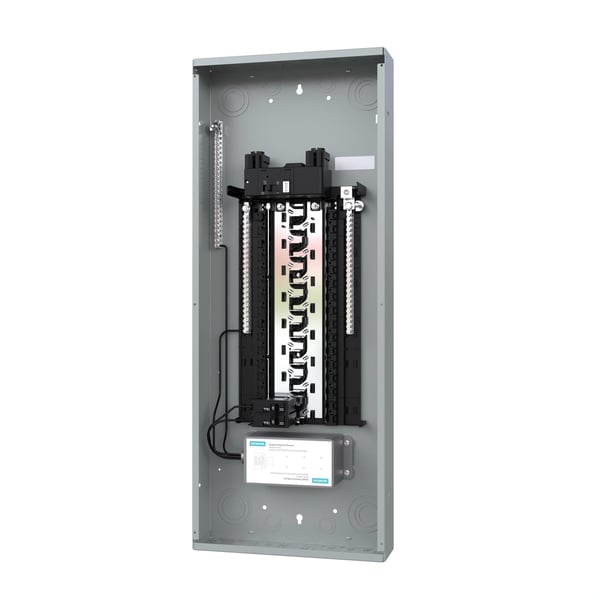

Siemens PN3048B1200S14

Documents

Short Description

PN series load centers - a new high quality and feature rich line of load center products meets applications for virtually every need. The PN series provide maximum flexibility in combination with labor saving features to aid the contractor while installing the product. PN load centers accept the plug-on neutral breakers, patented Insta wire neutral/ground system, convertibility, copper bussing and mounting tabs on the trim, the features that we specifically engineered to decrease installation time and increase flexibility.

Features

  • Quicker breaker installation
  • Wiring made easier with the neutral lug removed on CAFCI breakers
  • Small electronic breaker footprint
  • Design allows for neutral terminal accessibility
  • Over 4 in of wire bending space
  • Neutral clip is the same as line side
  • Durable hook rail
  • 225 A load centers will accept MBK225A, MBK200A and MBK150A
  • Designed for use with plug-on neutral breaker

Specification

Interrupt Rating
100 kAIC
Number of Circuits
82
Number of Spaces
54
Series
Pro PN Series
Type
1-Phase Assembled Convertible Low Voltage
Voltage Rating
120/240 VAC
Wiring Configuration
3-Wire
Application
Indoor Applications
Standard & Approvals
NEC, NEMA 250, UL E10703
Amperage Rating
225 A
Dimensions
15.48 in W x 44.24 in H
Enclosure Box Size
14.25 in W x 3.88 in D x 43 in H
Enclosure Type
NEMA 1
