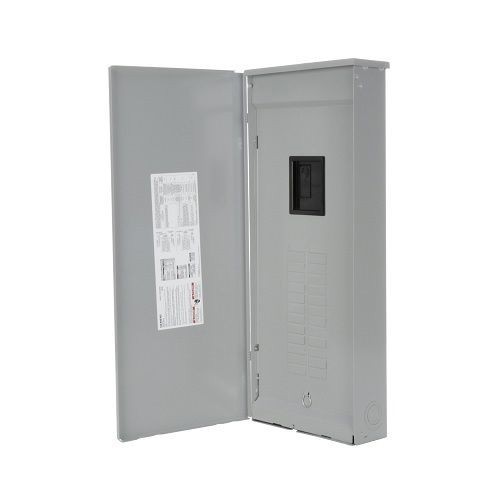

Siemens PW2442L3200CU PL Series Three Phase Main Lug Load Center, 120/240 VAC, 200 A, 22 kA Interrupt
Siemens PW2442L3200CU PL Series Three Phase Main Lug Load Center, 120/240 VAC, 200 A, 22 kA Interrupt
SKU: SIEPW2442L3200CU
Manufacturer Part Number: PW2442L3200CU
UPC: 662643156829
Documents
Short Description
Features
- Invertible for bottom feed application
- All devices are provided with 2 factory installed ground bars
- Combination head screw on the neutrals, ground, trim, upper pan, and bond screw provide installation flexibility
- A rigid, sturdy base pan provides the ruggedness required for the most harsh applications
- All devices convertible from main lug to main breaker and vice versa
- Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
- The prepositioned bond screw eliminates bond strap/screw assemblies, and reduces the risk of losing components in the field
- Outdoor enclosure
- Copper busbar
Specification
| Interrupt Rating | 22 kA |
|---|---|
| Mounting Type | Surface |
| Number of Circuits | 42 |
| Number of Spaces | 24 |
| Series | PL Series |
| Voltage Rating | 120/240 VAC |
| Wiring Configuration | 3/4-Wire Delta |
| Application | Residential Applications |
| Standard & Approvals | UL File No. E10703 |
| Amperage Rating | 200 A |
| Breaker Type | MBK150A/MBK200A |
| Bus Rating | 200 A |
| Enclosure Type | NEMA 3R |
| Includes | Ground Bar |
| Enclosure Box Size | 35 in H x 14-1/2 in W x 4-1/4 in D |
