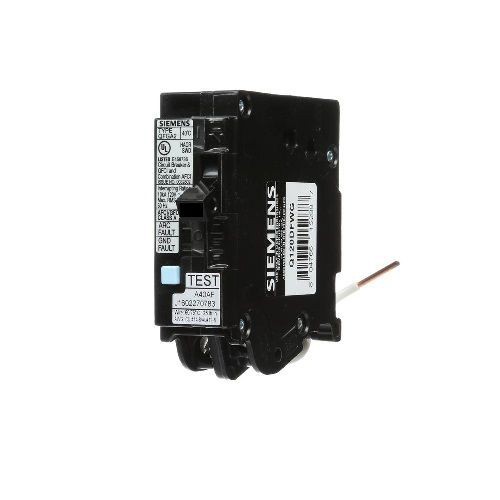

Siemens Murray WireGuide™ Q115DFWG Type QFGA2 AFCI/GFCI Combination Circuit Breaker, 120 V, 15 A, 10 kA Interrupt, 1 Poles, Thermal/Magnetic Trip

Selected Siemens Murray WireGuide™ Q115DFWG Type QFGA2 AFCI/GFCI Combination Circuit Breaker, 120 V, 15 A, 10 kA Interrupt, 1 Poles, Thermal/Magnetic Trip
Siemens Murray WireGuide™ Q115DFWG Type QFGA2 AFCI/GFCI Combination Circuit Breaker, 120 V, 15 A, 10 kA Interrupt, 1 Poles, Thermal/Magnetic Trip

Short Description

2-state of the art technologies combined in one device. Introducing the dual function circuit breaker that provides arc fault and ground fault protection in one device. A device that tests itself. Testing gfcis and AFCIs on a monthly basis is a good idea that is sometimes forgotten. Now the new self-test and lockout feature enables the dual function circuit breaker to automatically and continuously test itself to ensure that it is working properly. If it is detected that the device has been compromised, the device trips itself and locks OUT the homeowner from resetting the device, reducing the possibility of the homeowner incorrectly assuming that the device was tripped to prevent a ground/arc fault. This effortless system guarantees that only the best protection is given to your home at all times.

Features

  • Self-test and lockout feature
  • Saving time, ease of installation
  • Saving money, two safety devices combined into one
  • LED trip indicator for easier troubleshooting
  • Both lugs at the same angle for easier wiring
  • 14 to 8 AWG copper, 12 to 10 AWG aluminum wire range

Specification

Frame
QFGA2
Frequency Rating
50/60 Hz
Interrupt Rating
10 kA
Number Of Poles
1
Phase
1
Trip Type
Thermal/Magnetic
Voltage Rating
120 V
Wire Size
14 to 8 AWG, 12 to 8 AWG
Standard & Approvals
UL Listed
Amperage Rating
15 A
Connection Type
Plug-In
Enclosure Type
NEMA 3R
Application
Circuit Protection, Indoor, Personal, Parallel and Series Arcing Protection Applications
Type
Type QFGA2 AFCI/GFCI
Temperature Rating
-20 to 120 deg F
Power Rating
4 W
