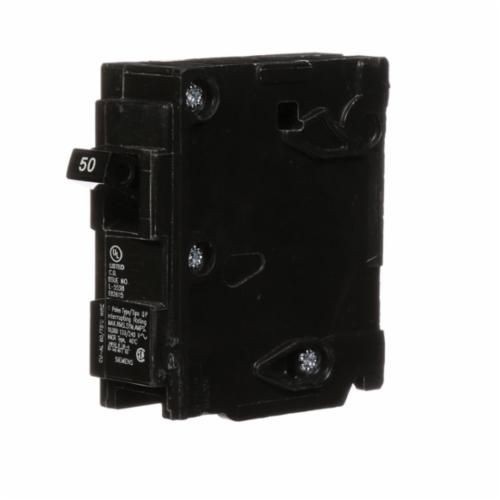

Siemens Q150 Molded Case Circuit Breaker With Insta-Wire, 120 VAC, 50 A, 10 kA Interrupt, 1 Poles, Thermal/Magnetic Trip
Siemens Q150 Molded Case Circuit Breaker With Insta-Wire, 120 VAC, 50 A, 10 kA Interrupt, 1 Poles, Thermal/Magnetic Trip
SKU: SIEQ150
Manufacturer Part Number: Q150
UPC: 783643148239
Documents
Features
- Circuit breaker offers long time instantaneous functions to perform efficiently
- It is ideal to use in air conditioning, heating, refrigeration and distribution applications
- 14 to 6 AWG copper aluminum wire
Specification
| Frame | QP/MP |
|---|---|
| Frequency Rating | 50/60 Hz |
| Interrupt Rating | 10 kA |
| Number Of Poles | 1 |
| Phase | 1 |
| Temperature Rating | 40 deg C |
| Trip Type | Thermal/Magnetic |
| Voltage Rating | 120 VAC |
| Wire Size | 8 to 6 AWG, 8 to 4 AWG |
| Application | Electrical Distribution Applications |
| Standard & Approvals | UL 489, CAs Certified, NOM Certified |
| Amperage Rating | 50 A |
| Connection Type | Plug-In/Lug-In/Lug-Out |
| Dimensions | 3 in L x 1 in W x 2.87 in H |
