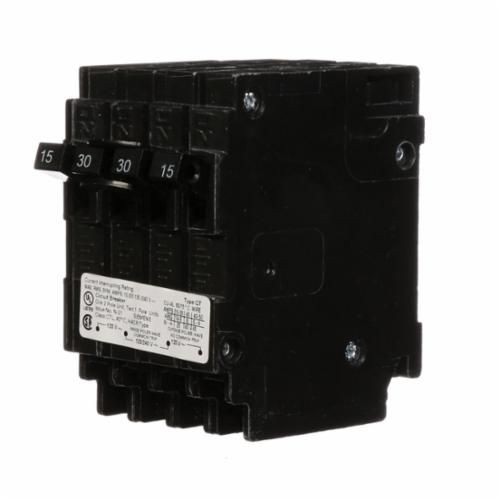

Siemens Q21540CT Type QT Low Voltage Miniature Triplex Molded Case Circuit Breaker, 120/240 VAC, 15 to 40 A, 10 kA Interrupt, 3 Poles, Thermal/Magnetic Trip
Siemens Q21540CT Type QT Low Voltage Miniature Triplex Molded Case Circuit Breaker, 120/240 VAC, 15 to 40 A, 10 kA Interrupt, 3 Poles, Thermal/Magnetic Trip
SKU: SIEQ21540CT
Manufacturer Part Number: Q21540CT
UPC: 783643194977
Documents
Features
- These space saver triplex breakers provide a 2-pole common trip breaker for 120/240 VAC circuits and two single poles for 120 VAC circuits
- Triplex require two panel spaces
- 8 AWG copper aluminum wire range
- 15 to 40 A ampere rating
Specification
| Frame | QT |
|---|---|
| Frequency Rating | 60 Hz |
| Interrupt Rating | 10 kA |
| Number Of Poles | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 15 to 40 A |
| Catalog ID | SIEQ21540CT |
| Connection Type | Plug-In |
| Dimensions | 3 in L x 2 in W x 3 in H |
| Phase | 1 |
| Trip Type | Thermal/Magnetic |
| Voltage Rating | 120/240 VAC |
| Wire Size | 8 AWG |
| Application | Electrical Distribution and Residential Applications |
| Standard & Approvals | UL 489, HACR Rated |
| Type | Type QT Low Voltage Miniature Triplex |
