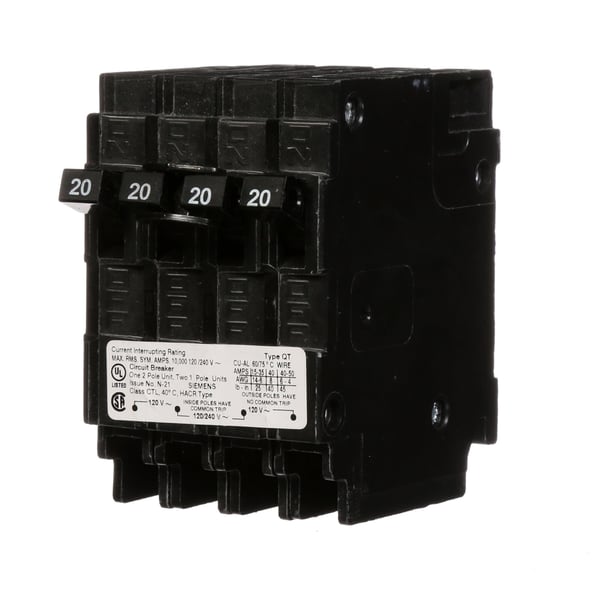

Siemens Q22020CT Type QT Low Voltage Miniature Triplex Molded Case Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 3 Poles, Thermal/Magnetic Trip
Siemens Q22020CT Type QT Low Voltage Miniature Triplex Molded Case Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 3 Poles, Thermal/Magnetic Trip
SKU: SIEQ22020CT
Manufacturer Part Number: Q22020CT
UPC: 783643194991
Documents
Features
- These space saver triplex breakers provide a 2-pole common trip breaker for 120/240 VAC circuits and two single poles for 120 VAC circuits
- Triplex require two panel spaces
- 14 to 6 AWG copper aluminum wire range
- 20 to 20 A
Specification
| Frame | QT |
|---|---|
| Frequency Rating | 60 Hz |
| Interrupt Rating | 10 kA |
| Number Of Poles | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 20 A |
| Connection Type | Plug-In |
| Phase | 1 |
| Temperature Rating | 40 deg C |
| Trip Type | Thermal/Magnetic |
| Type | Type QT Low Voltage Miniature Triplex |
| Voltage Rating | 120/240 VAC |
| Wire Size | 14 to 6 AWG |
| Application | Electrical Distribution and Residential Applications |
| Standard & Approvals | UL 489, HACR Rated |
| Dimensions | 12.9 in L x 3.8 in W x 3.4 in H |
| Catalog ID | SIEQ22020CT |
