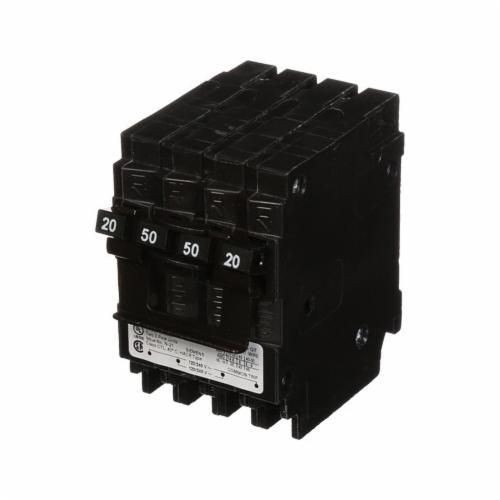

Siemens Q22050CT2 Low Voltage Miniature Quadplex Residential Molded Case Circuit Breaker, 120/240 VAC, 20 to 50 A, 10 kA Interrupt, 2 Poles, Thermal/Magnetic Trip
Siemens Q22050CT2 Low Voltage Miniature Quadplex Residential Molded Case Circuit Breaker, 120/240 VAC, 20 to 50 A, 10 kA Interrupt, 2 Poles, Thermal/Magnetic Trip
SKU: SIEQ22050CT2
Manufacturer Part Number: Q22050CT2
UPC: 887621024383
Features
- These space saver quadplex breakers provide two sets of common trip, two-pole breakers for 120/240V AC circuits, and require two panel spaces
- 14 to 6 AWG copper/aluminum
Specification
| Frame | QT |
|---|---|
| Interrupt Rating | 10 kA |
| Number Of Poles | 2 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 20 to 50 A |
| Catalog ID | SIEQ22050CT2 |
| Connection Type | Plug-In |
| Dimensions | 3.12 in H x 2 in W |
| Phase | 1 |
| Temperature Rating | 40 deg C |
| Trip Type | Thermal/Magnetic |
| Type | Low Voltage Miniature Quadplex Residential |
| Voltage Rating | 120/240 VAC |
| Wire Size | 14 to 6 AWG |
| Application | Electrical Distribution Applications |
| Standard & Approvals | HACR Rated, UL 489 |
