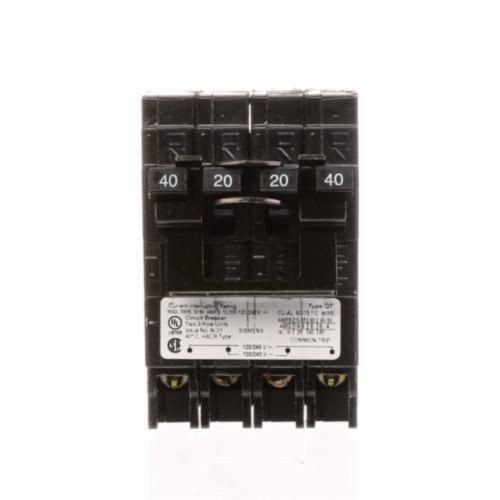

Siemens Q24020CT2NC Low Voltage Miniature Quadplex Residential Molded Case Circuit Breaker, 120/240 VAC, 40 to 20 A, 10 kA Interrupt, 2 Poles, Thermal/Magnetic Trip
Siemens Q24020CT2NC Low Voltage Miniature Quadplex Residential Molded Case Circuit Breaker, 120/240 VAC, 40 to 20 A, 10 kA Interrupt, 2 Poles, Thermal/Magnetic Trip
SKU: SIEQ24020CT2NC
Manufacturer Part Number: Q24020CT2NC
UPC: 887621024369
Documents
Features
- These space saver quadplex breakers provide two sets of common trip, two-pole breakers for 120/240V AC circuits, and require two panel spaces
- Non-current limiting
Specification
| Frame | QT |
|---|---|
| Interrupt Rating | 10 kA |
| Number Of Poles | 2 |
| Phase | 1 |
| Temperature Rating | 40 deg C |
| Trip Type | Thermal/Magnetic |
| Type | Low Voltage Miniature Quadplex Residential |
| Voltage Rating | 120/240 VAC |
| Application | Electrical Distribution Applications |
| Standard & Approvals | UL 489, HACR Rated |
| Amperage Rating | 40 to 20 A |
| Dimensions | 12.8 in L x 3.8 in W x 3.5 in H |
| Connection Type | Plug-In |
