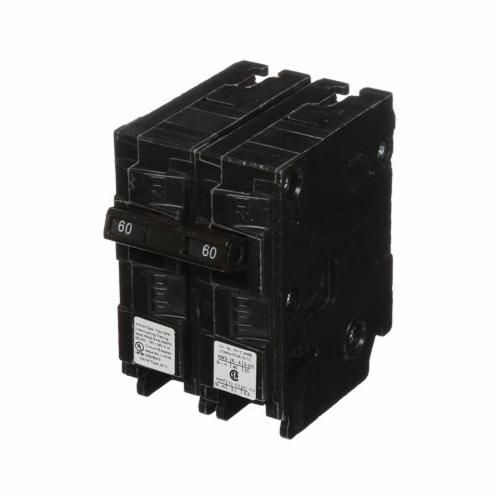

Siemens Q260H Type QP/MP Low Voltage Miniature Molded Case Circuit Breaker With INSTA-WIRE, 120/240 VAC, 60 A, 22 kA Interrupt, 2 Poles, LI/Thermal Magnetic Trip
Siemens Q260H Type QP/MP Low Voltage Miniature Molded Case Circuit Breaker With INSTA-WIRE, 120/240 VAC, 60 A, 22 kA Interrupt, 2 Poles, LI/Thermal Magnetic Trip
SKU: SIEQ260H
Manufacturer Part Number: Q260H
UPC: 783643148796
Documents
Features
- Circuit breaker offers long time instantaneous functions to perform efficiently
- It is ideal to use in air conditioning, heating, refrigeration and distribution applications
- 8 to 2/0 AWG copper aluminum wire range
Specification
| Frequency Rating | 60 Hz |
|---|---|
| Interrupt Rating | 22 kA |
| Number Of Poles | 2 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 60 A |
| Catalog ID | SIEQ260H |
| Connection Type | Load Lug/Plug-In |
| Dimensions | 3 in L x 3 in W x 2 in H |
| Enclosure Type | NEMA 1/3R |
| Phase | 1 |
| Temperature Rating | 40 deg C |
| Trip Type | LI/Thermal Magnetic |
| Type | Type QP/MP Low Voltage Miniature |
| Voltage Rating | 120/240 VAC |
| Wire Size | 8 to 2/0 AWG |
| Application | Electrical Distribution and Residential Applications |
| Standard & Approvals | UL 489 |
