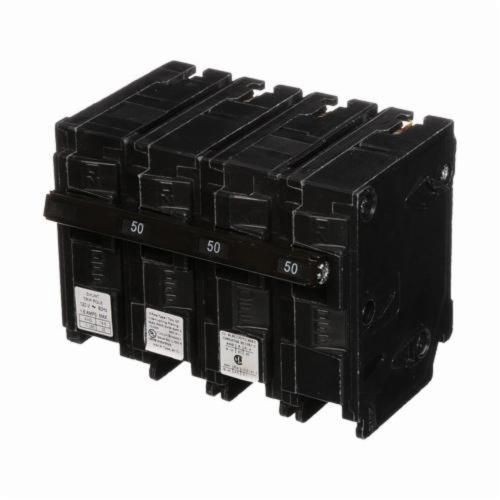

Siemens Q35000S01 Low Voltage Miniature Residential Molded Case Circuit Breaker With Insta-Wire, 120/240 VAC, 50 A, 10 kA Interrupt, 3 Poles, Shunt/Thermal Magnetic Trip
Siemens Q35000S01 Low Voltage Miniature Residential Molded Case Circuit Breaker With Insta-Wire, 120/240 VAC, 50 A, 10 kA Interrupt, 3 Poles, Shunt/Thermal Magnetic Trip
SKU: SIEQ35000S01
Manufacturer Part Number: Q35000S01
UPC: 783643237643
Documents
Features
- Circuit breaker offers long time instantaneous functions to perform efficiently
- It is ideal to use in air conditioning, heating, refrigeration and distribution applications
- 16 to 8 AWG cooper/aluminum wire
- 120 VAC shunt trip
- Load lug
Specification
| Frequency Rating | 50/60 Hz |
|---|---|
| Interrupt Rating | 10 kA |
| Mounting Type | Panel |
| Number Of Poles | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 50 A |
| Connection Type | Plug-In |
| Enclosure Type | NEMA 1/3R |
| Phase | 3 |
| Temperature Rating | 40 deg C |
| Trip Type | Shunt/Thermal Magnetic |
| Type | Low Voltage Miniature Residential |
| Voltage Rating | 120/240 VAC |
| Wire Size | 8 to 6 AWG, 8 to 4 AWG |
| Application | Electrical Distribution Applications |
| Standard & Approvals | UL 489, CAs Certified, NOM Certified |
| Dimensions | 3 in L x 4 in W x 2.87 in H |
| Catalog ID | SIEQ35000S01 |
| Frame | QP/MP |
