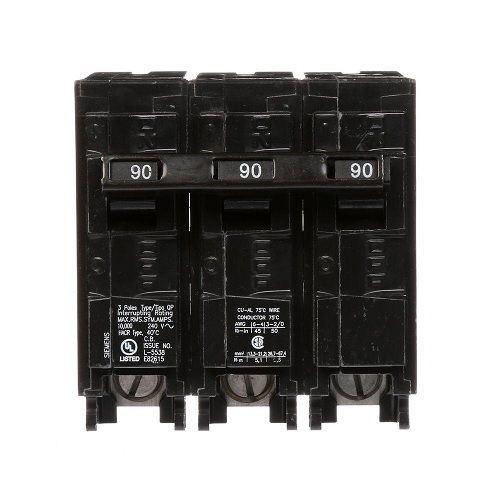

Siemens Q390 Low Voltage Miniature Residential Molded Case Circuit Breaker With Insta-Wire, 240 VAC, 90 A, 10 kA Interrupt, 3 Poles, Thermal/Magnetic Trip
Siemens Q390 Low Voltage Miniature Residential Molded Case Circuit Breaker With Insta-Wire, 240 VAC, 90 A, 10 kA Interrupt, 3 Poles, Thermal/Magnetic Trip
SKU: SIEQ390
Manufacturer Part Number: Q390
UPC: 783643148468
Documents
Features
- Circuit breaker offers long time instantaneous functions to perform efficiently
- It is ideal to use in Siemens loadcenters an interrupt current conditioning, heating, refrigeration and distribution applications
- 8 to 2/0 AWG copper aluminum wire
Specification
| Frame | QP/MP |
|---|---|
| Frequency Rating | 50/60 Hz |
| Interrupt Rating | 10 kA |
| Number Of Poles | 3 |
| Phase | 3 |
| Temperature Rating | 40 deg C |
| Trip Type | Thermal/Magnetic |
| Type | Low Voltage Miniature Residential |
| Voltage Rating | 240 VAC |
| Wire Size | 4 to 1/0 AWG, 2 to 1/0 AWG |
| Application | Electrical Distribution Applications |
| Standard & Approvals | UL 489, HACR Rated, CAs Certified, NOM Certified |
| Amperage Rating | 90 A |
| Dimensions | 3 in L x 3 in W x 3.12 in H |
| Connection Type | Plug-In/Lug-In/Lug-Out |
| Enclosure Type | NEMA 1/3R |
