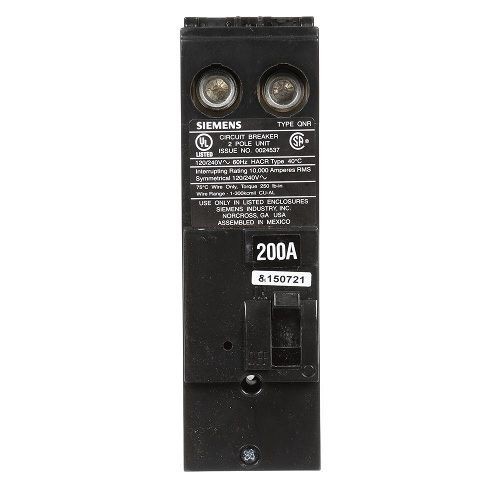

Siemens QN2200R Type QNR Low Voltage Miniature Molded Case Circuit Breaker, 120/240 VAC, 200 A, 10 kA Interrupt, 2 Poles, LI/Thermal Magnetic Trip
Siemens QN2200R Type QNR Low Voltage Miniature Molded Case Circuit Breaker, 120/240 VAC, 200 A, 10 kA Interrupt, 2 Poles, LI/Thermal Magnetic Trip
SKU: SIEQN2200R
Manufacturer Part Number: QN2200R
UPC: 783643204232
Documents
Features
- 1 AWG to 300 kcmil copper aluminum wire range
Specification
| Interrupt Rating | 10 kA |
|---|---|
| Number Of Poles | 2 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Actuator Type | Lever Operated |
| Amperage Rating | 200 A |
| Connection Type | Plug-In |
| Phase | 1 |
| Trip Type | LI/Thermal Magnetic |
| Voltage Rating | 120/240 VAC |
| Wire Size | 1 AWG to 300 kcmil |
| Application | Electrical Distribution and Residential Applications |
| Standard & Approvals | UL 489 |
| Type | Type QNR Low Voltage Miniature |
| Dimensions | 7.7 in L x 4.1 in W x 2.5 in H |
| Catalog ID | SIEQN2200R |
