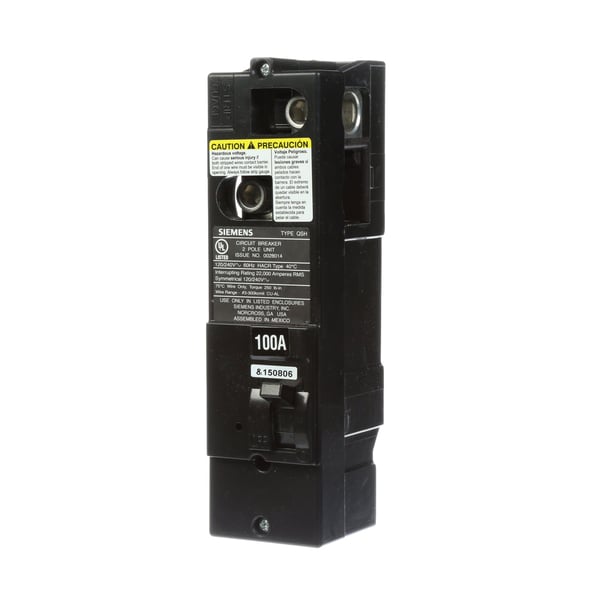

Siemens QS2100H Low Voltage Miniature Residential Molded Case Circuit Breaker, 120/240 VAC, 100 A, 22 kA Interrupt, 2 Poles, Thermal/Magnetic Trip

Selected QS2100HSiemens QS2100H Low Voltage Miniature Residential Molded Case Circuit Breaker, 120/240 VAC, 100 A, 22 kA Interrupt, 2 Poles, Thermal/Magnetic Trip
QS2100HSiemens QS2100H Low Voltage Miniature Residential Molded Case Circuit Breaker, 120/240 VAC, 100 A, 22 kA Interrupt, 2 Poles, Thermal/Magnetic Trip

Documents

Short Description

PowerMod™ core offering of residential meter stacks, type WMM, offers the widest product offering and flexibility in the industry. Each meter stack houses the QuickSystem™ features to maximize productivity and minimize labor costs. To further simplify installation, our 225 A meter stacks feature the QS breaker. The QS breaker adds to the Siemens exclusive feature set in our PowerMod™ product line.

Features

  • Long time and instantaneous
  • An exclusive side wired design saves wiring space and eliminates difficult "S bends"
  • Single right hand bend wiring - saves time and wire
  • 3 AWG to 300 kcmil copper/aluminum

Specification

Trip Type
Thermal/Magnetic
Type
Low Voltage Miniature Residential
Voltage Rating
120/240 VAC
Wire Size
3 AWG to 300 kcmil
Application
Electrical Distribution Applications
Standard & Approvals
UL 489
Minimum Order Qty
1
Order Interval
1
Amperage Rating
100 A
Catalog ID
SIEQS2100H
Connection Type
Plug-In
Dimensions
9 in L x 6 in W x 3 in H
Frame
QSH
Interrupt Rating
22 kA
Number Of Poles
2
Phase
1
