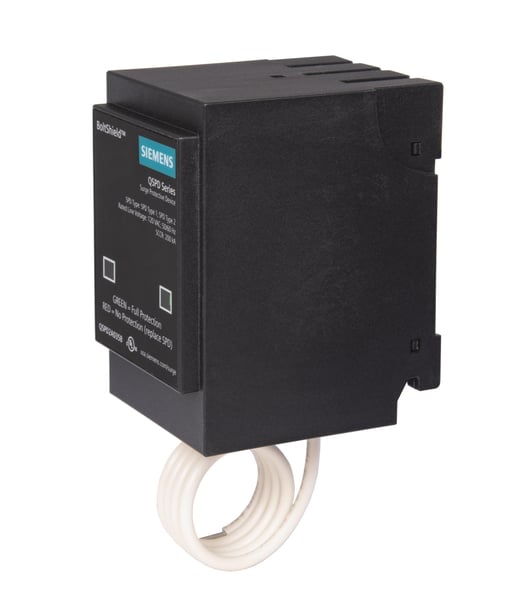

Siemens BoltShield™ QSPD2A035B QSPD Series 1-Phase Surge Protection Device, 120/240 VAC, 35 kA SCCR, 2 Poles

Selected Siemens QSPD2A035B
Siemens QSPD2A035B

Short Description

Surge protective devices (SPDs) provide the best protection from both externally and internally generated surges when located as close to the building distribution system as possible. For cost and space reasons many buildings only include one SPD located at the main incoming load center and do not cascade SPDs throughout the building as recommended by IEEE. The new Siemens QSPD series of SPDs are economical and easy to install in most panels throughout a building so that whole facility protection can be obtained. The QSPD base model is an additional option for applications that require minimal features, while offering quality surge protection.

Features

  • Monolithic distribution grade MOV
  • Thermally protected MOV

Specification

Number of Wires
3
Series
QSPD Series
Dimensions
79.9 mm H x 65.3 mm W x 50.4 mm D
Frequency Rating
0 to 415 Hz
Type of Indicators
LED
Voltage Rating
120/240 VAC
Type
1-Phase
Number Of Poles
2
Response Time
<1 ns
Short Circuit Current Rating
35 kA
