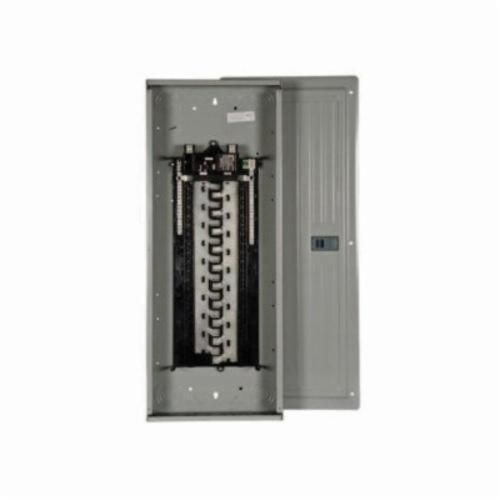

Siemens S4242B3225 ES Series Three Phase Main Breaker Load Center, 120/240 VAC, 225 A, 22 kA Interrupt
Siemens S4242B3225 ES Series Three Phase Main Breaker Load Center, 120/240 VAC, 225 A, 22 kA Interrupt
SKU: SIES4242B3225
Manufacturer Part Number: S4242B3225
UPC: 662643926811
Documents
Short Description
Features
- Invertible for bottom feed application
- Ground bar field installed (select skus with "G" suffix will have ground bar factory installed)
- Combination head screw on the neutrals, ground, trim, upper pan, and bond screw provide installation flexibility
- A rigid, sturdy base pan provides the ruggedness required for the most harsh applications
- All devices convertible from main lug to main breaker and vice versa
- Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
- The prepositioned bond screw eliminates bond strap/screw assemblies, and reduces the risk of losing components in the field
- The patented INSTA-WIRE neutral/ground system allows for faster installation because screws are backed out, ready for wire insertion
- The visible neutral and grounds system aids in the insertion of conductors
- Single side inboard neutral on 24 circuits and below, dual on 30 circuits and above
- 225 A load regulation
- Aluminum busbar
- Indoor enclosure
- 3690.9375 size
- 60/75 deg C temperature
- Combination mounting
Specification
| Interrupt Rating | 22 kA |
|---|---|
| Number of Circuits | 42 |
| Number of Spaces | 42 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 225 A |
| Breaker Type | MB |
| Bus Rating | 225 A |
| Catalog ID | SIES4242B3225 |
| Enclosure Box Size | 42 in H |
| Enclosure Type | NEMA 1 |
| Series | ES Series |
| Voltage Rating | 120/240 VAC |
| Wiring Configuration | 3/4-Wire |
| Application | Residential Applications |
| Standard & Approvals | UL File No. E10703 |
