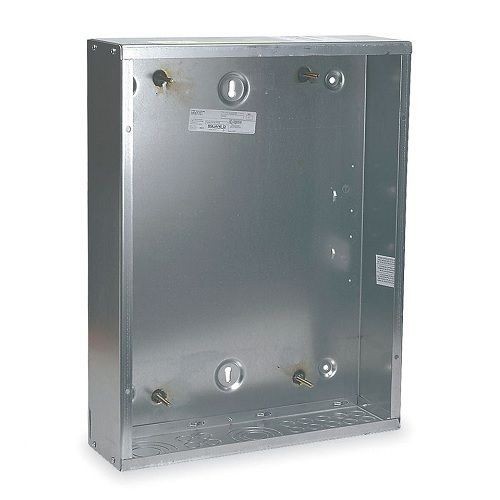

Siemens B68 Type P2 Panelboard Box Assembly, 68 in H x 20 in W x 5-3/4 in D, NEMA 1 NEMA Rating
Siemens B68 Type P2 Panelboard Box Assembly, 68 in H x 20 in W x 5-3/4 in D, NEMA 1 NEMA Rating
SKU: SIEB68
Manufacturer Part Number: SIB68
UPC: 783643080249
Features
- Base box size requirements for P2 panels with standard line lugs, and fewer than 55 poles of 1 in module (BL,BQD, ED, xGB) branch breakers and provisions
- Unit spaces range from 9 in to 45 in (in 6 in increments)
- Boxes range from 26 in to 74 in high (in 6 in increments)
- Inclusion of optional modifications may require size increases that must be added to these base values to calculate the final box size for the panel
- Indoor enclosure
- Without ground bus enclosure
- For use with P2 Panelboard kit
Specification
| Gauge | 16 ga |
|---|---|
| Height | 68 in |
| Material | Steel |
| Mounting Type | Surface |
| NEMA Rating | NEMA 1 |
| Width | 20 in |
| Depth | 5-3/4 in |
| Standard & Approvals | PB1/ UL50/50E/ UL67, RoHS Compliance |
| Application | Enclosure For Lighting Panels |
| Type | Type P2 |
