Siemens SW1224B1100 ES Series Single Phase Main Breaker Load Center, 120/240 VAC, 100 A, 22 kA Interrupt

Selected Siemens SW1224B1100 ES Series Single Phase Main Breaker Load Center, 120/240 VAC, 100 A, 22 kA Interrupt

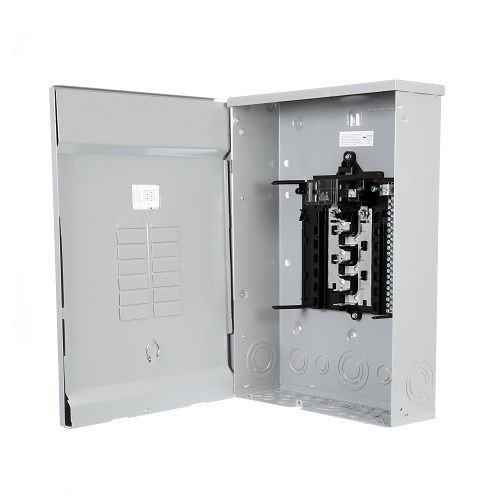

Siemens SW1224B1100 ES Series Single Phase Main Breaker Load Center, 120/240 VAC, 100 A, 22 kA Interrupt

Short Description

The ES series load center product line provides a wide array of variation to meet any application need.

Features

  • Invertible for bottom feed application
  • Ground bar field installed (select skus with "G" suffix will have ground bar factory installed)
  • Combination head screw on the neutrals, ground, trim, upper pan, and bond screw provide installation flexibility
  • A rigid, sturdy base pan provides the ruggedness required for the most harsh applications
  • All devices convertible from main lug to main breaker and vice versa
  • Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
  • The prepositioned bond screw eliminates bond strap/screw assemblies, and reduces the risk of losing components in the field
  • The patented INSTA-WIRE neutral/ground system allows for faster installation because screws are backed out, ready for wire insertion
  • The visible neutral and grounds system aids in the insertion of conductors
  • Single side inboard neutral on 24 circuits and below, dual on 30 circuits and above
  • Outdoor enclosure
  • Aluminum busbar

Specification

Interrupt Rating
22 kA
Mounting Type
Surface
Number of Circuits
24
Number of Spaces
12
Series
ES Series
Voltage Rating
120/240 VAC
Wiring Configuration
3-Wire
Application
Residential Applications
Standard & Approvals
UL File No. E10703
Amperage Rating
100 A
Breaker Type
MBK100A
Bus Rating
100 A
Enclosure Box Size
21 in H x 14-1/2 in W x 4-1/2 in D
Enclosure Type
NEMA 3R
