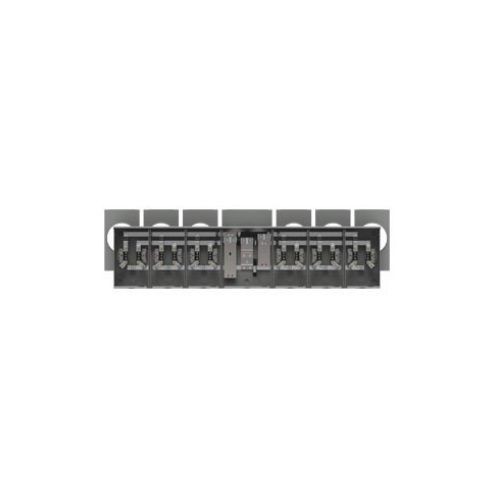

Siemens TALON® UA6719-KG 6-Position Type UAS8/9 Multi Position Meter Socket With Hub and Ground Lug, 600 VAC, 200 A, 1 Phase, NEMA 3R Enclosure
Siemens TALON® UA6719-KG 6-Position Type UAS8/9 Multi Position Meter Socket With Hub and Ground Lug, 600 VAC, 200 A, 1 Phase, NEMA 3R Enclosure
SKU: SIEUA6719KG
Manufacturer Part Number: UA6719-KG
UPC: 783643172425
Documents
Features
- Glass filled polyester block construction
- Lay-in line side lug
- Steel construction
- Without bypass
Specification
| Hub Size | 4.281 in |
|---|---|
| Hub Type | (2) Large HD Opening |
| Mounting Type | Surface |
| Number of Jaws | 4 |
| Phase | 1 |
| Terminal Type | Line/Load Lug |
| Voltage Rating | 600 VAC |
| Wire Size | (2) 6 AWG to 350 kcmil, 1/0 AWG to 600 kcmil |
| Application | Residential Applications |
| Standard & Approvals | ANSI C12-7, UL Listed |
| Amperage Rating | 200 A |
| Dimensions | 7 in H x 15 in W x 60 in D |
| Cover Type | Ringless |
| Enclosure Type | NEMA 3R |
| Feed Type | Overhead/Underground |
| Type | 6-Position Type UAS8/9 |
