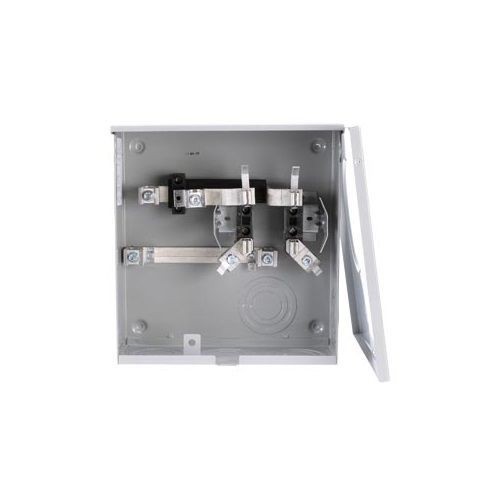

TALON® UAS877-PGF 1-Position Type UAS8 Low Voltage Meter Socket, 600 VAC, 200 A, 1 Phase, NEMA 3R Enclosure

Selected UAS877-PGFTALON® UAS877-PGF 1-Position Type UAS8 Low Voltage Meter Socket, 600 VAC, 200 A, 1 Phase, NEMA 3R Enclosure
UAS877-PGFTALON® UAS877-PGF 1-Position Type UAS8 Low Voltage Meter Socket, 600 VAC, 200 A, 1 Phase, NEMA 3R Enclosure

Documents

Short Description

TALON® has been the standard for quality and innovation for meter mounting equipment for over half a century. The heart of our offering continues to be the HQ lever bypass socket. The basic design of this socket has not changed since its original inception in 1956 making this a solid, time proven design. we continue to offer the HQ at a competitive price even when faced with lower cost and lower quality competition. The bypass blade for every HQ is rated for 320 A making every one of our sockets heavy duty. Our K-base products continue to offer the same dependability and cost advantages for extended range metering. The residential socket line continues to grow daily as we continuously add or update our products for an ever changing market.

Features

  • With ground lug, 7/8 in barrel lock knockout With bracket
  • Without bypass, hub opening
  • Ground lug on all devices
  • Glass filled polyester block construction
  • Lay-in 350 kcmil lugs or stud connection
  • Steel construction

Specification

Mounting Type
Surface
Number of Jaws
4
Minimum Order Qty
1
Order Interval
1
Amperage Rating
200 A
Cover Type
Ringless
Enclosure Type
NEMA 3R
Phase
1
Terminal Type
Line/Load Lug
Type
1-Position Type UAS8 Low Voltage
Voltage Rating
600 VAC
Application
Residential Applications
Standard & Approvals
UL Listed, ANSI-C12-7
Feed Type
Underground/Left
Dimensions
14 in H x 13 in W
Catalog ID
SIEUAS877PGF
