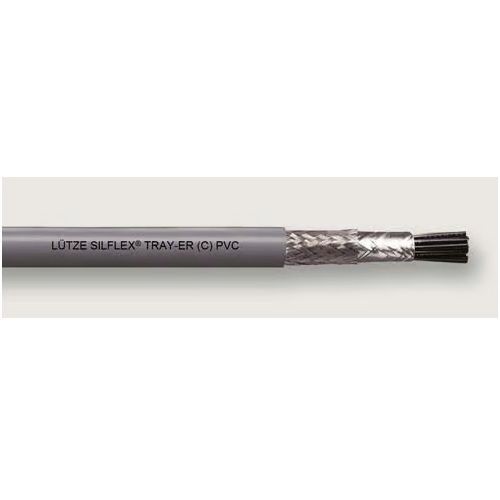

LUTZE SILFLEX® A3091407 Tray-ER Shielded Control Tray Cable, 600/1000 V, (7) 14 AWG Stranded Bare Copper Conductor

Selected LTZA3091407
LTZA3091407

Documents

Features

  • Flexible control and tray cable for stationary applications
  • Dual-shielded multi-conductor cable for tray and control applications, with exposed run (open wiring) approval
  • Crush impact-resistant
  • Gas/vaportight sheath per UL 1277
  • Non-wicking fillers
  • Sunlight-resistant
  • Flame retardant
  • Direct burial (18 AWG and larger)
  • Talc and silicone-free
  • TC-ER for use on machines and in open cable ducts
  • WTTC - wind turbine tray cable for use in wind turbines
  • MTW - machine tool wire
  • PLTC-ER - power limited tray cable - exposed run
  • ITC-ER - instrumentation tray cable
  • In dry, moist and wet rooms
  • Flexible wires with nylon for better resistance to pressure and impacts as per UL 1277
  • Very flexible flexibility for complex installation distances and small bending radii
  • Improved oil resistance due to specifically developed PVC jacket

Specification

Series
A309
Strands
41/30
Temperature Rating
-40 to 90 deg C Static
Type
Tray-ER Shielded
Voltage Rating
600/1000 V
Application
For machine tools, machine and plant construction, HVAC technology, assembly and production lines and other industrial applications
Standard & Approvals
Article 336/392/501, CE Certified, cUL TC and CIC FT4, DP-1, NEC Class 1 Division 2, REACH Compliant, RoHS Compliant, TC-ER-JP Approved, UL Type MTW/1277, UL AWM Style 20886, WTTC Approved
Minimum Order Qty
1
Order Interval
1
Conductor Size
14 AWG
Conductor Type
Stranded Bare Copper
Insulation Material
Nylon/PVC
Jacket Color
Gray
Jacket Material
PVC
Outside Diameter
0.475 in
Number of Conductors
7
Catalog ID
LTZA3091407
