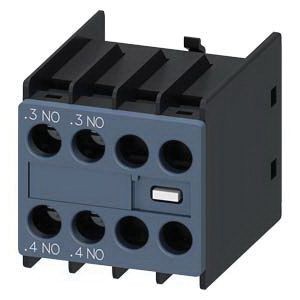

SIRIUS 3RH2911-1HA20 Auxiliary Switch Block, 24/230 VAC/24/110/220 VDC, 1/3/10 A, 2 Contacts
SIRIUS 3RH2911-1HA20 Auxiliary Switch Block, 24/230 VAC/24/110/220 VDC, 1/3/10 A, 2 Contacts
SKU: SIE3RH29111HA20
Manufacturer Part Number: 3RH2911-1HA20
UPC: 662643910094
Documents
Features
- 10 A at 24/230 VAC, 10 A at 24 VDC, 3 A at 110 VDC, 1 A at 220 VDC
- 10000000 mechanical/200000 electrical cycles
Specification
| Mounting Type | Snap-On |
|---|---|
| Number of Contacts | 2 |
| Operating Cycles | 10000000/200000 Cycles |
| Operating Temperature | -25 to 60 deg C |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Environmental Conditions | -55 to 80 deg C Storage Temperature |
| Standard & Approvals | CCC Certified, CSA Certified, UL Listed, EAC Approved, CE Certified, RoHS Compliant, ABS Approved, Bureau Veritas Certified, Lloyd's Registered, PRS Certified, RINA Certified, RMRS Approved, VDE Approved |
| Voltage Rating | 24/230 VAC/24/110/220 VDC |
| Suitable For Use With | 3RH Contactor Relay, 3RT Contactor, Power Contactor |
| Dimensions | 37.5 mm H x 36 mm W x 43.7 mm D |
| Catalog ID | SIE3RH29111HA20 |
| Amperage Rating | 1/3/10 A |
