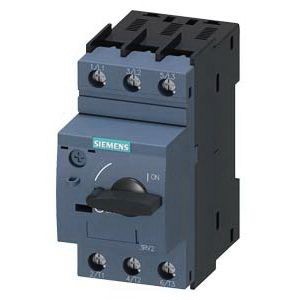

SIRIUS 3RV2021-1DA10 Motor Protection Circuit Breaker, 690 VAC, 3.2 A, 10 kA Interrupt, 3 Poles, Thermomagnetic Trip
SIRIUS 3RV2021-1DA10 Motor Protection Circuit Breaker, 690 VAC, 3.2 A, 10 kA Interrupt, 3 Poles, Thermomagnetic Trip
SKU: SIE3RV20211DA10
Manufacturer Part Number: 3RV2021-1DA10
UPC: 040892942200
Documents
Short Description
Features
- Minimization of energy losses through optimization of the bimetal trip units
- Reduction of inherent power loss
- Less heating of the control cabinet
- Smaller control cabinet air conditioners can be used
- 3RV2 motor starter protectors/circuit breakers are suitable for operation in IT systems (IT networks)
- 550 W at 230 VAC, 1100 W at 400 VAC, 1500 W at 500 VAC, 2200 W at 690 VAC
- 100 kA at 240 VAC, 100 kA at 400 VAC, 100 kA at 500 VAC, 10 kA at 690 VAC
- 2.2 to 3.2 A thermal overload release, 42 A instantaneous overcurrent release
- Without auxiliary switch
Specification
| Frequency Rating | 50/60 Hz |
|---|---|
| Interrupt Rating | 10 kA |
| Mounting Type | DIN Rail/Snap-On/Threaded |
| Number Of Poles | 3 |
| Phase | 3 |
| Temperature Rating | -20 to 60 deg C |
| Trip Type | Thermomagnetic |
| Voltage Rating | 690 VAC |
| Wire Size | 16 to 12 AWG, 14 to 8 AWG |
| Standard & Approvals | CCC Certified, CSA Certified, UL Listed, EAC Approved, EX ATEX, IECEx Certified, CE Certified, VDE Approved, RoHS Compliant, ABS Approved, Bureau Veritas Certified, Lloyd's Registered, PRS Certified, RINA Certified, RMRS Approved, DNV-GL Approved, EN 60715 |
| Connection Type | Screw |
| Enclosure Type | IP20 |
| Trip Range | 2.2 to 3.2/42 A |
| Power Rating | 2.2 kW |
| Frame | S0 |
| Dimensions | 97 mm H x 45 mm W x 97 mm D |
| Amperage Rating | 3.2 A |
