SIRIUS 3RV20414YA10 Motor Protection Circuit Breaker, 690 VAC, 75 to 93 A, 3 kA Interrupt, 3 Poles, Magnetic Trip

Selected SIRIUS 3RV20414KA10

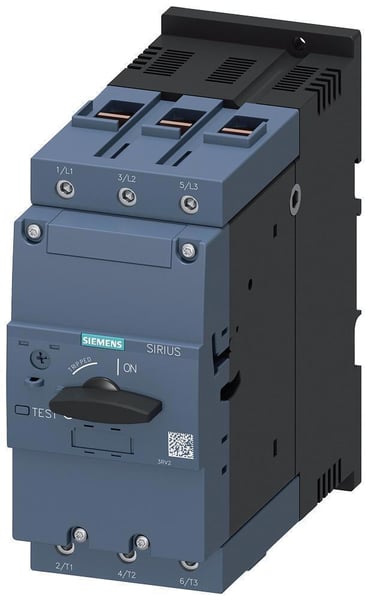

SIRIUS 3RV20414KA10

Documents

Short Description

The SIRIUS 3RV2 motor starter protectors/circuit breakers are compact, current limiting motor starter protectors/circuit breakers which are optimized for load feeders. The motor starter protectors/circuit breakers are used for switching and protecting three-phase motors of up to 55/45 kW at 400 VAC and for other loads with rated currents of up to 100 A.

Features

  • Class 10 trip

Specification

Phase
3
Connection Type
Screw
Temperature Rating
-20 to 60 deg C
Voltage Rating
690 VAC
Number Of Poles
3
Enclosure Type
IP20
Trip Type
Magnetic
Series
3RV2
Power Rating
90 kW
Mounting Type
DIN Rail
Amperage Rating
75 to 93 A
Interrupt Rating
3 kA
Frame
S3
Dimensions
165 mm H x 70 mm W x 176 mm D
Frequency Rating
50 to 60 Hz
