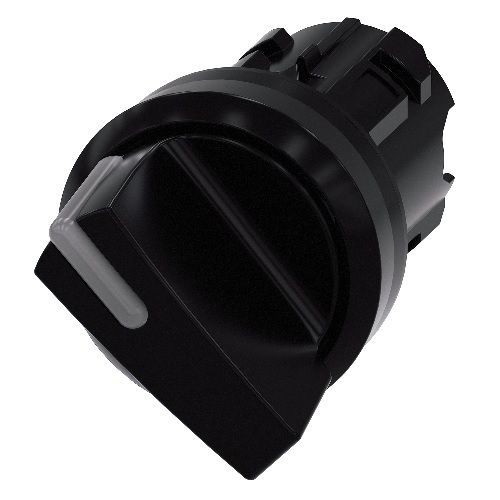

SIRIUS 3SU1002-2BF10-0AA0 Round Illuminated Selector Switch With Holder, 22 mm, Latching/Short Handle Operator, Black
SIRIUS 3SU1002-2BF10-0AA0 Round Illuminated Selector Switch With Holder, 22 mm, Latching/Short Handle Operator, Black
SKU: SIE3SU10022BF100AA0
Manufacturer Part Number: 3SU1002-2BF10-0AA0
UPC: 804766372988
Features
- Self-holding function of the actuator when mounting
- Twist prevention integrated into patented holder design
- Self-explanatory and fast installation using one hand
- Reliable, friction locked fixing with just one screw
- Design stability according to use
- Simple geometry for mounting holes
Specification
| Lamp Type | LED |
|---|---|
| Material | Plastic |
| Number of Positions | 2 |
| Operator Type | Latching/Short Handle |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Bezel/Housing | Plastic |
| Color | Black |
| Enclosure Type | NEMA 1/2/3/3R/4/4X/12/13/IP66/IP67/IP69/IP69K |
| Size | 22 mm |
| Type | Round |
| Standard & Approvals | CSA Certified, UL Listed, EAC Approved, CE Certified, ABS Approved, Lloyd's Registered, PRS Certified, RINA Certified, RMRS Approved, DNV-GL Approved |
| Application | For use in extreme environments |
| Throw | 90 deg |
| Environmental Conditions | -25 to 70 deg C Operating Temperature, -40 to 80 deg C Storage Temperature, 10 to 95% Relative Air Humidity |
| Catalog ID | SIE3SU10022BF100AA0 |
