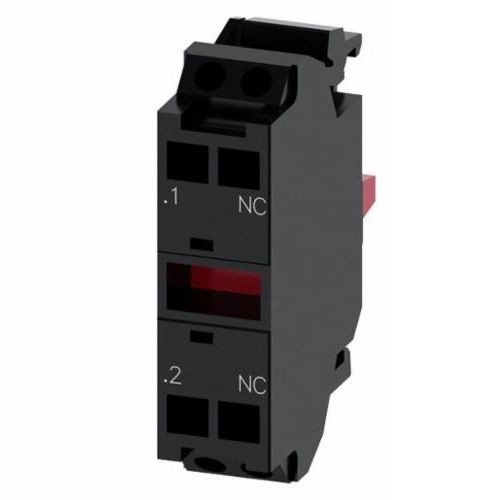

SIRIUS 3SU14001AA103CA0 Contact Module With Contact Element, 1NC, 10 A at 5 to 500 VAC/VDC, For Use With Front Plate Mounting, Silver Alloy Contact
SIRIUS 3SU14001AA103CA0 Contact Module With Contact Element, 1NC, 10 A at 5 to 500 VAC/VDC, For Use With Front Plate Mounting, Silver Alloy Contact
SKU: SIE3SU14001AA103CA0
Manufacturer Part Number: 3SU14001AA103CA0
UPC: 804766073298
Features
- 500 VAC insulation voltage rated value
- 6 kV surge voltage resistance rated value
- 3600 1/h maximum operating frequency
- 10 A thermal current
- -25 to 70 deg C operation ambient
Specification
| Mounting | Front Plate |
|---|---|
| Suitable For Use With | Front Plate Mounting |
| Terminal Type | Spring |
| Standard & Approvals | ARRA, Buy American Act and RoHS Compliant, UL Listed, CE, CSA Certified |
| Dimensions | 36 mm H x 9.8 mm W x 27.7 mm D |
| Contact Configuration | 1NC |
| Contact Material | Silver Alloy |
| Contact Rating | 10 A at 5 to 500 VAC/VDC |
| Enclosure | IP20/IP40 |
