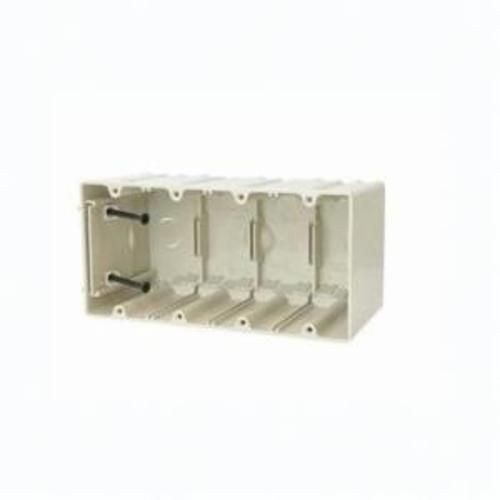

SLIDERBOX® SB-4 Electrical Box, 74.8 cu-in, 4 Gangs, 8 Outlets, 2 Knockouts, Polycarbonate
SLIDERBOX® SB-4 Electrical Box, 74.8 cu-in, 4 Gangs, 8 Outlets, 2 Knockouts, Polycarbonate
SKU: ABXSB-4
Manufacturer Part Number: SB-4
UPC: 085339945048
Documents
Features
- For new and old work residential construction
- Molded-in splined device holes
- Offset gauge marks
- Leveling ribs
- Adjustable slider plate for additional wall substrate thickness
- Carbon steel fasteners
- Slot provision for low voltage divider
- Internal screws with adjustable slider plate for substrates 1/2 to 1-3/8 in mounting
- Molded of engineering grades of non-metallic thermoplastic
- Slots retain slider plate and guide it in a straight motion
- Slider plate holds screws in ready position to enable contractor to mount boxes faster
- Rectangular exterior for easy cut-in
- Molded-in Speed Klamps™
Specification
| Knockout Size | 1/2 in |
|---|---|
| Number of Gangs | 4 |
| Number of Knockouts | 2 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Color | Beige/Tan |
| Material | Polycarbonate |
| Application | For use with nonmetallic sheathed cable |
| Video | https://www.youtube.com/watch?v=vwAoSggww10&feature=youtu.be |
| Shape | Rectangle |
| Standard & Approvals | ANSI/UL 514C File No E30594 |
| Number of Outlets | 8 |
| Dimensions | 3-3/4 in H x 7-5/8 in W x 3-9/16 in D |
| Catalog ID | ABXSB-4 |
| Cable Entry | Knockout |
| Capacity | 74.8 cu-in |
