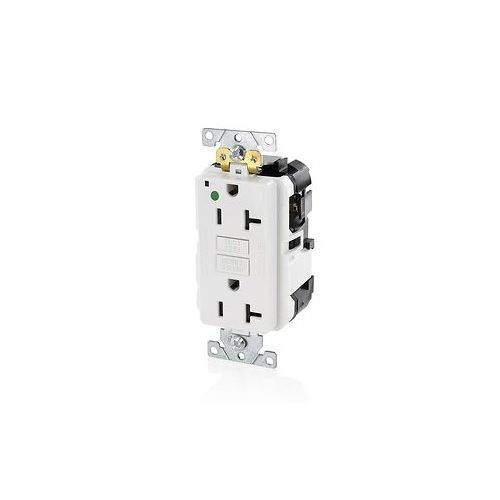

Leviton® SmartlockPro® Slim® MGFN2-HGW Duplex Feed Through Self-Test GFCI Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White

Selected Leviton® SmartlockPro® Slim® MGFN2-HGW Duplex Feed Through Self-Test GFCI Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White
Leviton® SmartlockPro® Slim® MGFN2-HGW Duplex Feed Through Self-Test GFCI Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White

Short Description

Peace of mind, all the time. The SmartlockPro® Self-Test GFCI tests itself even if you forget. Designed to meet the latest UL standard for auto-monitoring (self-test) our complete line of self-test GFCIs periodically conduct an automatic internal test to confirm that it can respond to a ground fault. With the slimmest profile on the market, the device allows for fast and easy installation, while Leviton® patented reset lockout mechanism prevents reset of the GFCI if it is not wired or operating correctly. The SmartlockPro® Self-Test GFCI is the smart choice in ground fault circuit interrupter protection.

Features

  • Patented bridge contact design provides individual sets of contacts for GFCI receptacle face and downstream receptacles, no power will be delivered to receptacle face if improperly wired (line load reversed)
  • Improved immunity to high frequency noise reduces nuisance tripping
  • Advanced electronics design provides superior resistance to electrical surges and over voltages
  • Low profile design is easy to install in all electrical boxes
  • Patented SmartlockPro® protection prevents resetting when ground fault protection has been lost
  • All modules have a circuit ID label for ease of identification
  • Solid brass locking pins for strong, secure connection between receptacle and wiring module

Specification

Grade
Extra Heavy Duty/Hospital
Material
Polycarbonate
NEMA Rating
NEMA 5-20R
Number Of Poles
2
Number of Wires
3
Minimum Order Qty
1
Order Interval
1
Amperage Rating
20 A
Catalog ID
LEVMGFN2-HGW
Color
White
Dimensions
1.74 in W x 1.46 in D x 4.05 in H
Temperature Rating
-35 to 66 deg C
Terminal Type
Back and Side Wired/Modular
Type
Duplex Feed Through Self Test Slim
Voltage Rating
125 VAC
Standard & Approvals
ARRA, Buy American Act, RoHS Compliant, UL 943, UL 498, CSA C22.2 No. 42, 144, Federal Specification W-C-596
Horsepower
1 hp
