SolaHD 23-23-125-8 CVS Constant Voltage Transformer, 120/240/480 VAC Primary, 120 VAC Secondary, 250 VA Power Rating, 60 Hz, 1 Phase

Selected 23-23-210-8SolaHD 23-23-210-8 Constant Voltage Transformer, 120/208/240/480 VAC Input, 120/240 VAC Output, 8.3 A, 1 Phase

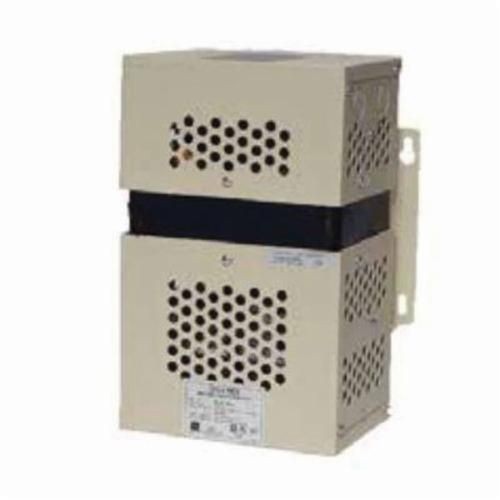

23-23-210-8SolaHD 23-23-210-8 Constant Voltage Transformer, 120/208/240/480 VAC Input, 120/240 VAC Output, 8.3 A, 1 Phase

Documents

Short Description

Superior voltage regulation of +/-1% sets the CVS series apart from other power conditioning technologies on the market. Extremely tight regulation is accomplished by SolaHD’s ferroresonant transformer technology. The CVS recreates a well regulated sinusoidal waveform that is well isolated from input disturbances including Impulses, Swells, Brownouts, Sags, Severe waveform distortion. No other power conditioning technology provides as complete a solution against these power quality disturbances. The CVS series is Ideal for applications where even a small change in voltage level can lead to unscheduled downtime, misoperation, incorrect data or scrapped production.

Features

  • Superior voltage regulation of +/-1%
  • Harmonic filtering, hardwired
  • Surge protection tested to ANSI/IEEE C62.41, Class A and B waveform
  • Acts as a step-up/step-down transformer
  • Galvanic isolation provides exceptional circuit protection
  • 5 year typical mean time between failure
  • No maintenance required
  • Noise attenuation of 40 dB common mode, 40 dB transverse mode
  • 32 - 65 dBA Full audible resistive noise
  • 0.5 A at 480 VAC, 1 A at 240 VAC, 2.1 A at 120 VAC

Specification

Frequency Rating
60 Hz
Mounting Type
Panel
Output Voltage
120 VAC
Phase
1
Power Efficiency
0.92
Series
CVS
Application
Industrial Automation and Control Equipment PLCs, Analytical Laboratory and Factory Automating Equipment, Photo Processing Equipment, Sound/Recording Systems, Photographic Enlargers and Broadcast Equipment
Standard & Approvals
ANSI/IEEE C62.41, Class A and B Waveform, cULus Listed, UL 1012, CSA C22.2 No. 66, RoHS Compliant
Amperage Rating
2.1 A
Dimensions
8 in H x 4 in W x 5 in D
Temperature Rating
-20 to 50 deg C
Power Rating
250 VA
Operating Temperature
-20 to 50 deg C
Noise Attenuation
40 dB
Input Voltage
120/240/480 VAC
