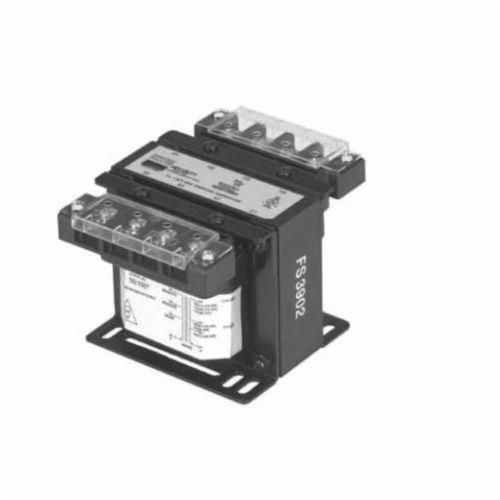

SolaHD E075E SBE Encapsulated Control Transformer, 120/240 VAC Primary, 24 VAC Secondary, 0.075 kVA Power Rating, 50/60 Hz, 1 Phase

Selected E150SolaHD E500 SBE Encapsulated Control Transformer, 240/480 VAC Primary, 120 VAC Secondary, 0.5 kVA Power Rating, 50/60 Hz, 1 Phase
E150SolaHD E500 SBE Encapsulated Control Transformer, 240/480 VAC Primary, 120 VAC Secondary, 0.5 kVA Power Rating, 50/60 Hz, 1 Phase

Short Description

The SBE Encapsulated industrial control transformers are epoxy encapsulated to seal the transformer windings against moisture, dirt and industrial contaminants. Extra deep, molded terminal barriers reduce the chance of electrical failure as the result of arcing or frayed lead wires. The rugged construction and proven reliability of the SBE design is uniquely suited for all industrial environments.

Features

  • Interleaved copper windings reduce I2R losses and maximize efficiency
  • Epoxy encapsulated to protect cores and coils against moisture, dirt and other contaminants
  • Heavy gauge steel mounting plate
  • Mounting dimensions are compatible with similar control transformers
  • Secondary fuse holders (FB2X) included for 13/32 x 1-1/2 cartridges (fuses not included)
  • Factory installed primary fuse holder class CC and secondary fuse holder
  • 0.20 x 0.5 S1/0.20 x 0.5 S2 in slot
  • 55 deg C rise, 105 deg C insulation system to minimize heat
  • Integrally molded, flame retardant (IEC 707/ISO class 1210) terminal blocks provide greater terminal contact area and improved conductivity
  • 120 x 240 VAC primary volt
  • 24 VAC secondary volt

Specification

Frequency Rating
50/60 Hz
Insulation
105 deg C
Mounting Type
Panel
Minimum Order Qty
1
Order Interval
1
Catalog ID
H-DE075E
Connection Type
Wire Lead
Dimensions
3.99 in L x 3.01 in W x 2.72 in H
Enclosure Type
IP20
Phase
1
Power Rating
0.075 kVA
Primary Voltage
120/240 VAC
Secondary Voltage
24 VAC
Series
SBE
Temperature Rating
131 deg F
Type
Encapsulated
Standard & Approvals
ANSI C89, C89.1 Standard, CSA C22.2 No 66 Certified, UL 506 Listed, NEMA Standard ST 1, RoHS Compliant
