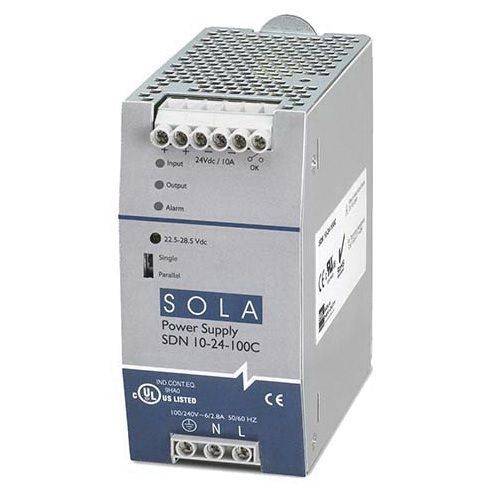

SolaHD SDN10-24-100C SDN-C Compact Power Supply, 115/230 VAC Input, 24 VDC Output, 240 W Power Rating, 1.65/0.55 A, DIN Rail Mount

Selected SolaHD SDN10-24-100C SDN-C Compact Power Supply, 115/230 VAC Input, 24 VDC Output, 240 W Power Rating, 1.65/0.55 A, DIN Rail Mount
SolaHD SDN10-24-100C SDN-C Compact Power Supply, 115/230 VAC Input, 24 VDC Output, 240 W Power Rating, 1.65/0.55 A, DIN Rail Mount

Documents

Short Description

The SDN-C DIN rail power supplies are the next generation of the popular SDN series. These models combine high efficiency and compact size with new visual diagnostic LEDs to offer the most performance available from SolaHD. Essential industrial features such as sag Immunity, power factor correction, and universal voltage input have been retained in this series. Wide temperature operating range and parallel operation capability make the new SDN-C units suitable to a variety of industrial applications.

Features

  • Compact packaging to save space on the DIN rail via patented DIN rail mounting clip
  • Visual diagnostic LEDs for input and output status at a glance
  • High MTBF means high reliability and long life, higher efficiency saves energy and lowers amount of heat generated in panel
  • PowerBoost™ overload capability to start high inrush loads, active power factor correction
  • User adjustable output voltage accessible via front face
  • Large, rugged, accessible screw terminals
  • Fully tested and burned-in at factory

Specification

Mounting Type
DIN Rail
Output Voltage
24 VDC
Type
Compact
Application
Industrial Machine Control and Process, Conveying Equipment, Material Handling and Packaging Equipment
Width
2.36 in
Series
SDN-C
Power Rating
240 W
Input Voltage
115/230 VAC
Height
4.85 in
Frequency Rating
43 to 67 Hz
Depth
4.36 in
Case Material
Metal
Amperage Rating
1.65/0.55 A
Standard & Approvals
RoHS Compliant, ATEX Directive EN60079-0, EN60079-15, CE Compliant, Class I, Zone 2, AEx nC IIC, Ex nC IIC Certified, CSA E60079-15 Certified, cULus IEC/EN60950-1, IEC 60079-0, IEC 60079-15 Listed, UL 60079-15 Listed
