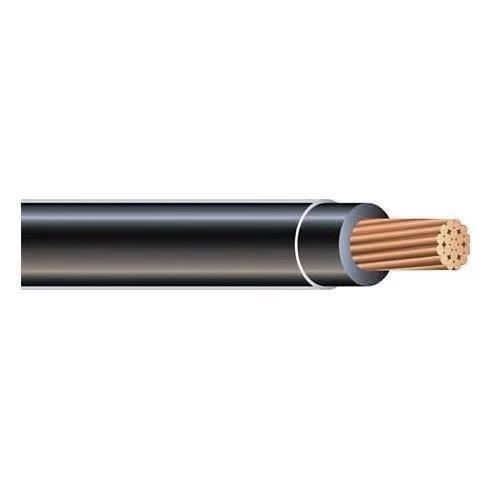

Southwire® SIMpull® 20510403 Soft Drawn Type THWN-2 MTW Building Wire, Reel Packaging, 600 V, (1) 300 kcmil Annealed Copper Conductor, 1500 ft L, Black

Pick Up Only
Selected WCUTHHN300BKM5
WCUTHHN300BKM5

Documents

Short Description

Southwire® SIMpull THHN® copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the national electrical code. Voltage for all applications is 600 V. SIMpull THHN® copper conductors are designed to be installed without application of a pulling lubricant.

Specification

Strands
37
Temperature Rating
90 deg C
Type
Soft Drawn Type THWN-2 MTW
Voltage Rating
600 V
Standard & Approvals
ASTM B3/B8/B787, cULus Listed, CSA C22.2 File No. 75, Federal Specification A-A-59544, ICEA S-95-658, NEMA WC70, NFPA 70, REACH/RoHS Compliant, UL 83/758/1063/1581
Minimum Order Qty
1
Order Interval
1
Amperage Rating
320 A
Catalog ID
WCUTHHN300BKM5
Conductor Size
300 kcmil
Conductor Type
Annealed Copper
Insulation Material
PVC
Jacket Color
Black
Jacket Material
Nylon
Length
1500 ft
Number of Conductors
1
Outside Diameter
747 mil
Packaging Type
Reel
