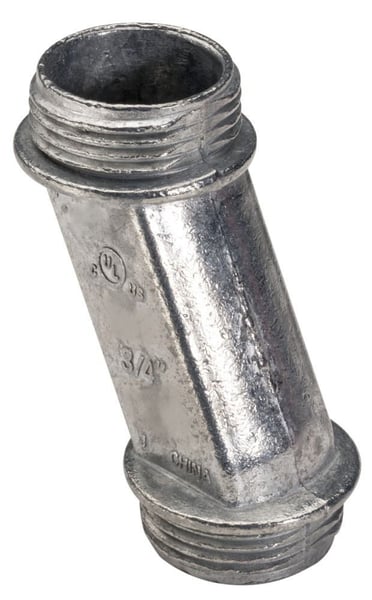

Southwire - Topaz 115 Male Threaded Offset Nipple, 1-1/2 in, For Use With Rigid and IMC Conduit, Die Cast Zinc

Selected 112Southwire - Topaz 116 Male Threaded Offset Nipple, 2 in, For Use With Rigid and IMC Conduit, Die Cast Zinc
112Southwire - Topaz 116 Male Threaded Offset Nipple, 2 in, For Use With Rigid and IMC Conduit, Die Cast Zinc

Documents

Short Description

Southwire - Topaz Rigid offset nipple design enables easier direction or slight elevation change of EMT conduits entering boxes or enclosures. Offsets the axis of the raceways bgy 3/4 in. Durable zinc die cast construction with an insulated throat for abrasion protection.

Features

  • Enables easier direction change of conduit
  • Use as an offset connector between two enclosures
  • Offsets the axis of the raceways by 3/4 in

Specification

Size
1-1/2 in
Type
Male Threaded
Standard & Approvals
UL 514B, UL E148716, cULus E148716 Listed, CSA Certified, Federal Specification Number A-A-50553, NEMA/ANSI FB-1, Military Specification Number W-F-406D, W-F-406E, W-F-408D, W-S-610D
Minimum Order Qty
1
Order Interval
1
Material
Die Cast Zinc
Application
Indoor/Outdoor Applications
Suitable For Use With
Rigid and IMC Conduit
Dimensions
2.125 in OD x 3.08 in L
Catalog ID
SWI115
