Southwire - Topaz 154 Straight Connector, 1-1/4 in Trade, 1.42 to 1.65 in Cable Openings, Die Cast Zinc

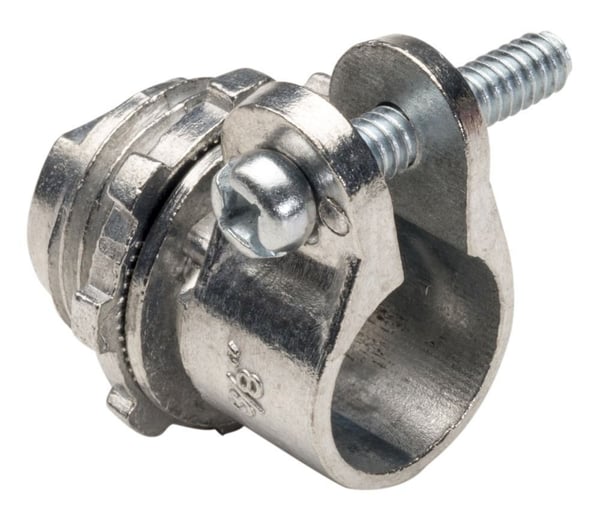

Selected 158Southwire - Topaz 152 Straight Connector, 3/4 in Trade, 0.88 to 1.11 in Cable Openings, Die Cast Zinc
158Southwire - Topaz 152 Straight Connector, 3/4 in Trade, 0.88 to 1.11 in Cable Openings, Die Cast Zinc

Short Description

Southwire - Topaz BX-FLEX connectors feature squeeze type straight construction and are fabricated from naturally corrosion-resistant and durable zinc die cast. Securely joins flexible metal conduit to EMT and in dry locations connects flexible metal conduit or armored cable to electrical boxes or enclosures. Single screw assembly in sizes 3/8 to 2 in, 2 screw assembly in sizes 2-1/2 to 4 in, available for conduit sizes 3/8 to 4 in, UL listed. For use in dry locations only.

Specification

Trade Size
1-1/4 in
Type
Straight
Application
For connecting flexible metallic conduit and steel AC cable to a steel outlet box, load center or other metal enclosure
Standard & Approvals
CSA Certified, UL Listed, UL 514B, UL File No. E148716, US Federal Specification A-A-50552, NEMA/ANSI FB-1, Military Specification W-F-406D/W-F-406E/W-F-408D/W-S-610D
Minimum Order Qty
1
Order Interval
1
Cable Openings
1.42 to 1.65 in
Cable Type
BX-Flex
Catalog ID
SWI154
Connection Type
Threaded x Squeeze
Dimensions
1.91 in L
Material
Die Cast Zinc
