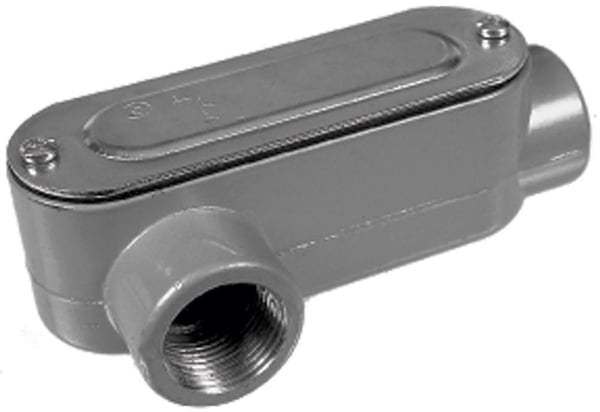

Southwire - Topaz LR9CG Type LR Conduit Body With Stamped Steel Cover, Neoprene Rubber Gasket, 3-1/2 in Hub, Die Cast Aluminum, Powder Coated

Selected IDW IMAGE c70c8930be03baaca97e9116911fea931aab837649d283ea00feb4015737a8c3
IDW IMAGE c70c8930be03baaca97e9116911fea931aab837649d283ea00feb4015737a8c3

Documents

Short Description

Topaz's Rigid Threaded LR type Conduit Body, with Cover and Gasket is manufactured from copper free aluminum. LR type conduit bodies permit 90° right bends in conduit systems, provide easy access for splicing and can correct and change direction of conduit runs. Smooth, rounded integral bushings in hubs offers protection for conductor insulation. Excellent ground continuity and corrosion resistance; lightweight aluminum construction; cover and watertight gasket ensures weatherproof installations. UL listed.

Features

  • Threaded LR type with cover and gasket
  • NPT tapered hubs

Specification

Finish
Powder Coated
Mounting Type
Wall
Type
Type LR
Connection Type
FNPT
Number of Hubs
2
Material
Die Cast Aluminum
Hub Size
3-1/2 in
Dimensions
15.5 in L x 6.171 in W x 5.452 in H
