SpecSeal® READY® FS200 Fire Barrier Sleeve Kit, 2 in L, Zinc Plated Steel, Specifications Met: ASTM E 814, UL 1479, CAN/ULC S115, cUL Listed

Selected FS400SpecSeal® READY® FS200 Fire Barrier Sleeve Kit, 2 in L, Zinc Plated Steel, Specifications Met: ASTM E 814, UL 1479, CAN/ULC S115, cUL Listed
FS400SpecSeal® READY® FS200 Fire Barrier Sleeve Kit, 2 in L, Zinc Plated Steel, Specifications Met: ASTM E 814, UL 1479, CAN/ULC S115, cUL Listed

Documents

Short Description

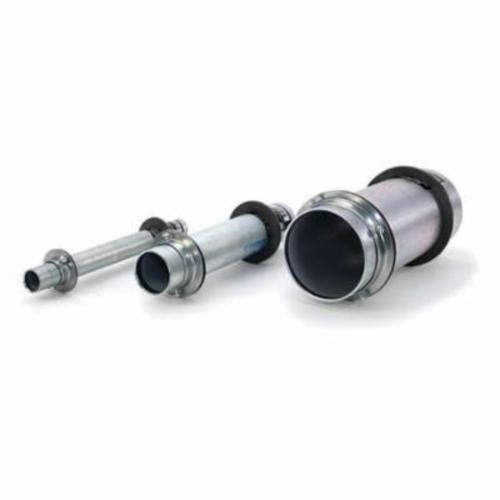

SpecSeal® Ready® Sleeve are designed for new cabling penetrations where sleeves are required. Each Ready® Sleeve kit includes a preformed steel sleeve with rolled edges, steel escutcheon plates with in tumescent gaskets, and a dosage of our SpecSeal® SSP Firestop Putty. The rolled edges of each Ready® Sleeve eliminate the need for bushings while the included escutcheon plates and gaskets take the place of steel strut and strap supports.

Features

  • Offers significant material and labor savings
  • No cutting required, no waste
  • No support struts and clamps required
  • Factory supplied intumescent firestop gasket
  • Sufficient to seal ends to 1 in depth
  • 2.38 to 2.5 in opening
  • -10 to 120 deg F intumescent gasket in-service temperature
  • -10 to 120 deg F putty fully fill in-service temperature

Specification

Length
2
Color
Red
Standard & Approvals
ASTM E 814, cUL/UL Listed
Application
For used to protect or support cables in both nonrated and rated construction, common constructions including concrete floors, concrete walls, concrete block walls, and gypsum board/stud wall assemblies up to 10 in thick
Material
Zinc Plated Steel
Includes
Escutcheon Plates, Gaskets, Putty and Wall Labels
