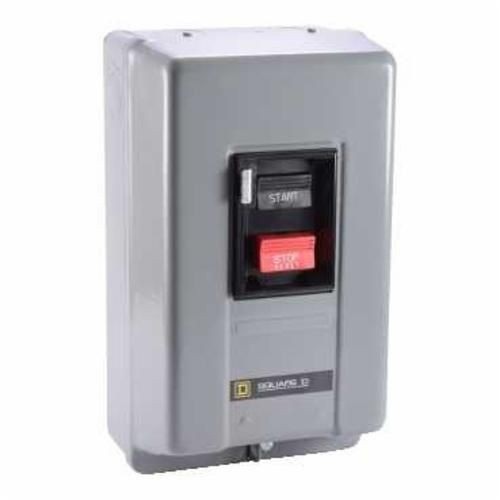

Square D™ 2510M Non-Reversing Manual Motor Starter, 3 Poles, NEMA 1 Enclosure
Square D™ 2510M Non-Reversing Manual Motor Starter, 3 Poles, NEMA 1 Enclosure
SKU: SQD2510MCG3
Manufacturer Part Number: 2510MCG3
UPC: 785901792109
Features
- Integral horsepower manual starter
- Typical applications include small machine tools, pumps, fans and conveyors
- Square pushbutton operator
- NEMA M-1 enclosure rating
- Painted sheet steel
- 10 hp at 380 to 575 VAC 3-phases, 7.5 hp at 200 to 230 VAC 3-phase power rating
- Surface mounting
Specification
| Material | Steel |
|---|---|
| Motor Power | 10 |
| Number Of Poles | 3 |
| Amperage Rating | 27 A |
| Dimensions | 8.63 in H x 5 in W x 3.91 in D |
| Voltage Rating | 600 VAC/250 VDC |
| Application | For provide convenient on-off operation of small single-phase, polyphase or DC motor |
| Connection Type | Pressure Wire Clamp |
| Control Type | Pushbutton Operator |
| Enclosure Type | NEMA 1 |
| Overload Relay | Thermal Magnetic |
| Phase | 3 |
| Standard & Approvals | UL Listed, CSA Certified, California Provision: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov |
