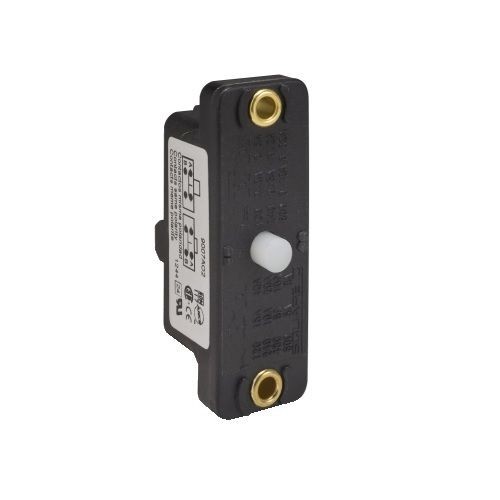

Square D™ OsiSense® 9007AO2 Fixed Heavy Duty Snap Switch, 600 VAC, 15 A, 1NO-1NC, 1 Pole

Selected Square D™ OsiSense® 9007AO2 Fixed Heavy Duty Snap Switch, 600 VAC, 15 A, 1NO-1NC, 1 Pole
Square D™ OsiSense® 9007AO2 Fixed Heavy Duty Snap Switch, 600 VAC, 15 A, 1NO-1NC, 1 Pole

Features

  • Fixed body
  • Plunger head
  • Cast zinc body and operator material
  • Linear movement of operating head
  • Plastic spring return plunger with thermoplastic end type of operator
  • On end switch actuation
  • (1) direction vertical approach
  • 1 to 2 cables, 6-binder head screw terminals
  • One number of pole
  • Form Z contacts
  • 1 number of steps
  • Silver contacts
  • -20 to 185 deg F ambient air temperature for storage

Specification

Material
Plastic
Number Of Poles
1
Operating Temperature
-20 to 185
Minimum Order Qty
1
Order Interval
1
Action
Snap
Amperage Rating
15 A
Catalog ID
SQD9007AO2
Connection Type
Screw Clamp
Contact Configuration
1NO-1NC
Enclosure Type
NEMA 1/IP20
Series
9007
Size
2.5 in H x 0.95 in W x 2.44 in D
Type
Fixed Heavy Duty
Voltage Rating
600 V
Standard & Approvals
ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL Listed, CSA Certified, PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
