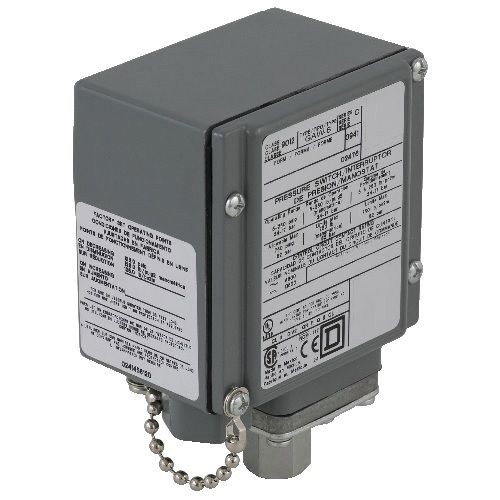

Square D™ 9012GAW6 Electro-Mechanical Pressure Switch, 5 to 250 psi, 10 to 49 psi, 1NO-1NC SPDT/DB, Screw Clamp, 6 A, 120 VAC, 0.27 A, 250 VDC

Selected Square D™ 9012GAW6 Electro-Mechanical Pressure Switch, 5 to 250 psi, 10 to 49 psi, 1NO-1NC SPDT/DB, Screw Clamp, 6 A, 120 VAC, 0.27 A, 250 VDC
Square D™ 9012GAW6 Electro-Mechanical Pressure Switch, 5 to 250 psi, 10 to 49 psi, 1NO-1NC SPDT/DB, Screw Clamp, 6 A, 120 VAC, 0.27 A, 250 VDC

Short Description

The 9012G pressure switches are UL Listed and CSA certified as industrial control equipment. They are used to interface pneumatic or hydraulic systems with electrical control systems by opening or closing electrical contacts in response to pressure changes in the system. They have outstanding repeatability and drift performance. Their efficient design uses durable, low mass components for excellent performance under heavy duty vibration and shock conditions.

Features

  • High shock resistance
  • High set-point stability
  • Internal or external range adjustment
  • No drain line required
  • Dual numerical range scale (psi and kPa)
  • Nitrile diaphragms and zinc-plated steel flanges are standard
  • Diaphragms of Viton fluorocarbon or ethylene propylene are available as well as stainless steel flanges
  • NC-NO, SPDT-DB, form Z, snap action, silver nickel contacts
  • Hydraulic oil (-40 to 250 deg F), non-corrosive liquids, air, non-corrosive gas controlled fluid
  • 1/4 in 18 NPTF conforming to UL 508 fluid connection
  • Regulation between 2 thresholds, adjustable scale
  • 4 screw terminal block
  • Screw clamp terminals, 22 to 12 AWG electrical connection
  • Zinc plated steel flange
  • Nitrile (Buna-N) diaphragm
  • Panel mounting, 10 A/480 VAC
  • Die cast aluminum alloy 380, 120 operating cycles/min (maximum)
  • 1/2 in NPT conduit entrance cable entry
  • Watertight, dusttight, oiltight and corrosion resistant (indoor/outdoor) environmental conditions

Specification

Housing Material
Aluminum
Maximum Pressure
750
Operating Cycles
5000000
Minimum Order Qty
1
Order Interval
1
Catalog ID
SQD9012GAW6
Connection Type
Screw Clamp
Contact Configuration
1NO-1NC SPDT/DB
Contact Rating
6 A, 120 VAC, 0.27 A, 250 VDC
Diaphragm Material
Nitrile
Differential
10 to 49
Dimensions
5.55 in H x 3.5 in W x 2.63 in D
Enclosure Type
NEMA 4/4X/13
Pressure Rating
5 to 250
Temperature Rating
-10 to 185
Type
Electro-Mechanical
Application
Compressed Air Systems, HVAC Equipment, Chillers, Pumping Systems, Machine Tools, Stamping Presses, Automatic Grinders, Welders, Process Equipment and Molding Machines
Standard & Approvals
ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL File No. E12442 CCN NOWT, CSA Class 3218 02 File No. LR26817, CE Marked, IEC Rated, PPROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
