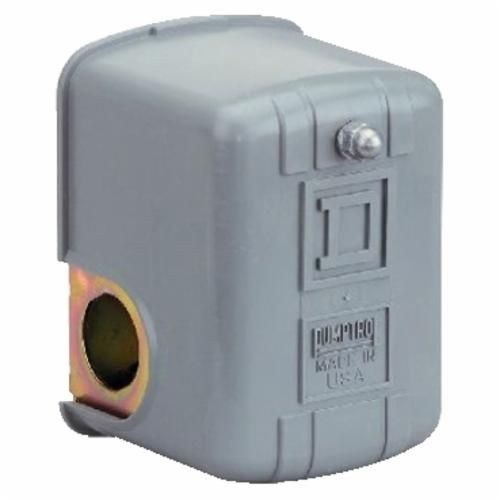

Square D™ Pumptrol™ 9013FHG12J52 Electro-Mechanical Pressure Switch, 70 to 150 psig, 30 psi, 2NC DPST/DB, Screw Clamp
Square D™ Pumptrol™ 9013FHG12J52 Electro-Mechanical Pressure Switch, 70 to 150 psig, 30 psi, 2NC DPST/DB, Screw Clamp
SKU: SQD9013FHG12J52
Manufacturer Part Number: 9013FHG12J52
UPC: 785901035640
Features
- Class 9013 Type FHG pressure switches are designed for the control of small electrically driven air compressors
- Contacts open on pressure rise
- Diaphragm actuated
- 2 NC, snap action, DPST-DB, Form YY contact
- Air (-22 to 257 deg F) controlled fluid
- 0.25 in NPSF internal conforming to UL 508 fluid connection
- Regulation between 2 thresholds, fixed differential scale
- 4 terminals block
- Screw-clamp terminals, 10 AWG clamping capacity electrical connection
- Nitrile (Buna-N) diaphragm
- 300000 cycles mechanical durability, 100000 cycles at 10 cyc/mn electrical durability
- Zinc plated steel or equivalent flange
- 1.1 kW (1.5 hp) at 115 VAC 1 phase, 0.75 kW (1 hp) at 575 VAC 3 phases, 0.75 kW (1 hp) at 460 VAC 3 phases, 1.5 kW (2 hp) at 230 VAC 1 phase, 1.5 kW (2 hp) at 115 VAC 3 phases, 2.2 kW (3 hp) at 230 VAC 3 phases
- General purpose (indoor) enclosure
- Bracket mounting
- (2) 0.88 in cable entries with 0.84 in across flats UL 508
- A600 NEMA contact rating designation
- Noryl thermoplastic resin
Specification
| Housing Material | Thermoplastic |
|---|---|
| Maximum Pressure | 220 psi |
| Operating Cycles | 300000 |
| Type | Electro-Mechanical |
| Connection Type | Screw Clamp |
| Application | For controlling small electrically driven air compressors |
| Pressure Rating | 70 to 150 psig |
| Enclosure Type | NEMA 1/IP20 |
| Differential | 30 psi |
| Diaphragm Material | Nitrile |
| Contact Configuration | 2NC DPST/DB |
| Dimensions | 3.71 in H x 2.78 in W x 3.76 in D |
| Standard & Approvals | CE Marked, CSA Class 3211 06 File No. LR25490 Certified, RoHS Compliant, UL 508 File No. E12158 CCN NKPZ Listed |
| Temperature Rating | -33 to 257 deg F |
