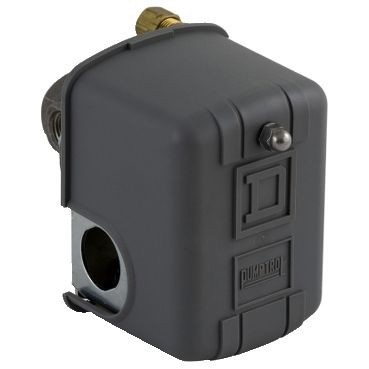

Square D™ Pumptrol™ 9013FHG12J52X Type F Electromechanical Pressure Switch, 2NC, DPST-DB Contact, Screw Clamp Connection

Selected 9013FHG12J52XSquare D™ Pumptrol™ 9013FHG12J52X Type F Electromechanical Pressure Switch, 2NC, DPST-DB Contact, Screw Clamp Connection
9013FHG12J52XSquare D™ Pumptrol™ 9013FHG12J52X Type F Electromechanical Pressure Switch, 2NC, DPST-DB Contact, Screw Clamp Connection

Short Description

Pressure switches, float switches, vacuum switches and power pressure switches for control or monitoring of water pumps, compressors, agricultural/irrigation water systems, moulding presses, injection moulders, grinding machines, machining centers, complex and special machines, HVAC, automotive, food and beverage, healthcare facilities, pharmaceutical and more. Classes 9013.

Features

  • 9013F power pressure switches rated for the direct control of motors in pump and compressor applications
  • Rugged, robust construction provides a long life and provides years of uninterrupted, worry-free service
  • Drift proof cut-in and cut-out settings
  • Has visible vertical contacts, easy to inspect without removal
  • An extra strong frame that resists distortion when mounting the switch to a compressor
  • Designed for the direct control of motors in pump and compressor applications
  • 1/4 in NPSF Internal pressure
  • Off at 125 psi pressure
  • 2-way pressure release value

Specification

Housing Material
Polypropylene
Operating Cycles
10 cpm
Minimum Order Qty
1
Order Interval
1
Catalog ID
SQD9013FHG12J52X
Connection Material
Zinc Plated Steel
Connection Type
Screw Clamp
Contact Configuration
2NC, DPST-DB
Diaphragm Material
Nitrile
Enclosure Type
NEMA 1/IP20
Series
9013
Temperature Rating
-33 to 257 deg F
Type
Type F
Application
Industrial, Pressure control or monitoring of water pumps, compressors, agricultural/irrigation water systems, moulding presses, injection moulders, grinding machines, machining centers, complex and special machines, HVAC, automotive, food and beverage, healthcare facilities, pharmaceutical and Controlling small electrically driven air compressors
Standard & Approvals
ARRA Compliant, BAA Compliant, ECCN EAR99, CE Certified, CSA File LR25490, IEC 60529, REACH Compliant, RoHS Compliant, UL 50/508/File E12158, PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
