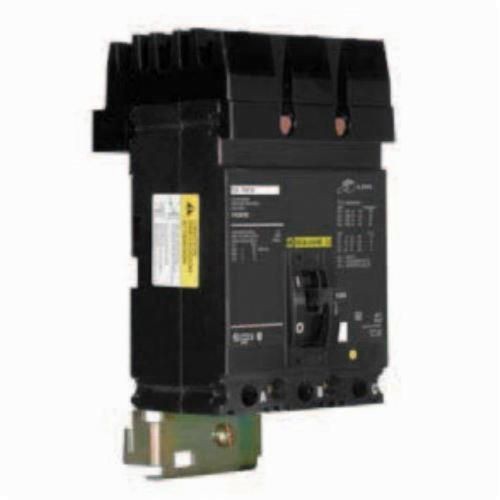

Square D™ I-Line™ FA34030 Type FA Molded Case Circuit Breaker, 480 VAC/250 VDC, 30 A, 18 kA Interrupt, 3 Poles, Thermal/Magnetic Trip
Square D™ I-Line™ FA34030 Type FA Molded Case Circuit Breaker, 480 VAC/250 VDC, 30 A, 18 kA Interrupt, 3 Poles, Thermal/Magnetic Trip
SKU: SQDFA34030
Manufacturer Part Number: FA34030
UPC: 785901422624
Documents
Short Description
Features
- Their primary functions are to provide a means to manually open a circuit and automatically open a circuit under overload or short circuit conditions
- Thermal magnetic circuit breakers use bimetals and electromagnetic assemblies to provide overcurrent protection
- Their characteristic inverse time tripping under overload conditions is ideally suited for many applications varying from residential to heavy industrial loads
- 100 A frame size
- Fixed instantaneous trip
- Used on class 650/651 I-Line® panelboard/switchboard
- Standard interrupting, individually mounted
- Compact and easy to install
- With non-interchangeable trip unit
- Cu/Al Wire
Specification
| Frame | F |
|---|---|
| Frequency Rating | 50/60 Hz |
| Interrupt Rating | 18 kA |
| Mounting Type | Plug-In |
| Number Of Poles | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Actuator Type | Handle |
| Amperage Rating | 30 A |
| Connection Type | Lug |
| Phase | 3 |
| Temperature Rating | 104 deg F |
| Trip Type | Long Time and Instantaneous |
| Voltage Rating | 480 VAC/250 VDC |
| Enclosure Type | NEMA 1/3R/4/4X/5/7/9/12 |
| Dimensions | 6 in H x 4.5 in W x 4.13 in D |
| Catalog ID | SQDFA34030 |
| Standard & Approvals | UL Listed, CSA Certified, CE Marked, IEC, Federal Specification W-C-375B/GEN, HACR Rated |
| Application | For panelboards and switchboards |
| Wire Size | 14 to 4/12 to 4 AWG |
| Type | Type FA Thermal Magnetic |
| Trip Range | 275 to 600 A |
