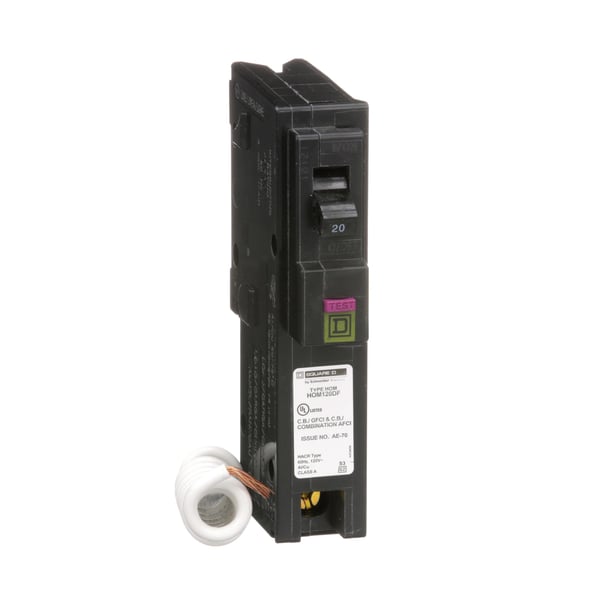

Square D™ Homeline™ HOM120DF Class A Miniature Circuit Breaker, 120 VAC, 20 A, 10 kA Interrupt, 1 Pole, Thermal Magnetic Trip

Selected Square D HOM120DF
Square D HOM120DF

Documents

Short Description

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 20A at 120 VAC. HOM breakers provide 10 kA breaking capacity. This dual function Homeline circuit breaker combines arc fault and ground fault circuit interrupters. This circuit breaker provides overload and short circuit protection, plus arc fault and ground fault protection in a single device in accordance with the NEC, UL1699 and UL943. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.

Features

  • Homeline GFCI MCB are designed to protect against irregular electrical current
  • Compatible with Homeline electrical panel and CSEDs
  • Protects against overload, short curcuits, and ground faults with a current greater than 6mA

Specification

Interrupt Rating
10 kA
Frequency Rating
50/60 Hz
Voltage Rating
120 VAC
Number Of Poles
1
Amperage Rating
20 A
Enclosure Type
NEMA 1/2
Dimensions
2.98 in L x 1 in W x 3.13 in H
Type
Class A
Wire Size
14 to 8 AWG, 14 to 10 AWG
Trip Type
Thermal Magnetic
Connection Type
Terminal Screw
Temperature Rating
104 deg F
Mounting Type
Plug-On
