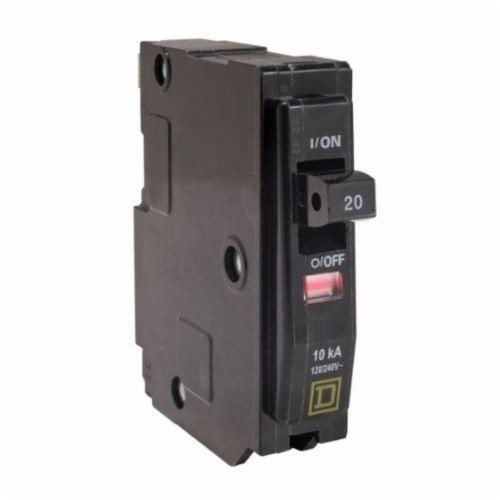

Square D™ QO120 Miniature Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 1 Pole, Thermal Magnetic Trip

Selected Square D™ QO120 Miniature Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 1 Pole, Thermal Magnetic Trip
Square D™ QO120 Miniature Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 1 Pole, Thermal Magnetic Trip

Related Products

Short Description

Standard thermal-magnetic QO and Homeline 15 and 20 A circuit breakers are listed to UL489 and provide overload and short circuit protection for conductors. The QO and Homeline thermal-magnetic circuit breakers are for general use in protecting branch circuit in residential and commercial applications. Use QO and Homeline 15 and 20 A arc fault circuit interrupter circuit breakers that have been listed to UL1699 in order to provide arc fault circuit protection for the entire branch circuit in accordance with the installation requirements in National Electrical Code section 210.12. Thermal-magnetic circuit breakers are not designed, listed, or intended to provide protection against low level hazardous arcing conditions in branch circuit wiring.

Specification

Frame
QO
Frequency Rating
50/60 Hz
Interrupt Rating
10 kA
Mounting Type
Plug-On
Number Of Poles
1
Minimum Order Qty
1
Order Interval
1
Amperage Rating
20 A
Connection Type
Pressure Plate
Phase
1
Temperature Rating
40 deg C
Trip Type
Thermal Magnetic
Voltage Rating
120/240 VAC
Wire Size
14 to 8 AWG
Application
For providing overload and short circuit protection
Standard & Approvals
CSA Certified, HACR Rated, RoHS Complaint, UL Listed
Dimensions
0.75 in W x 2.91 in D x 3 in H
Catalog ID
SQDQO120
